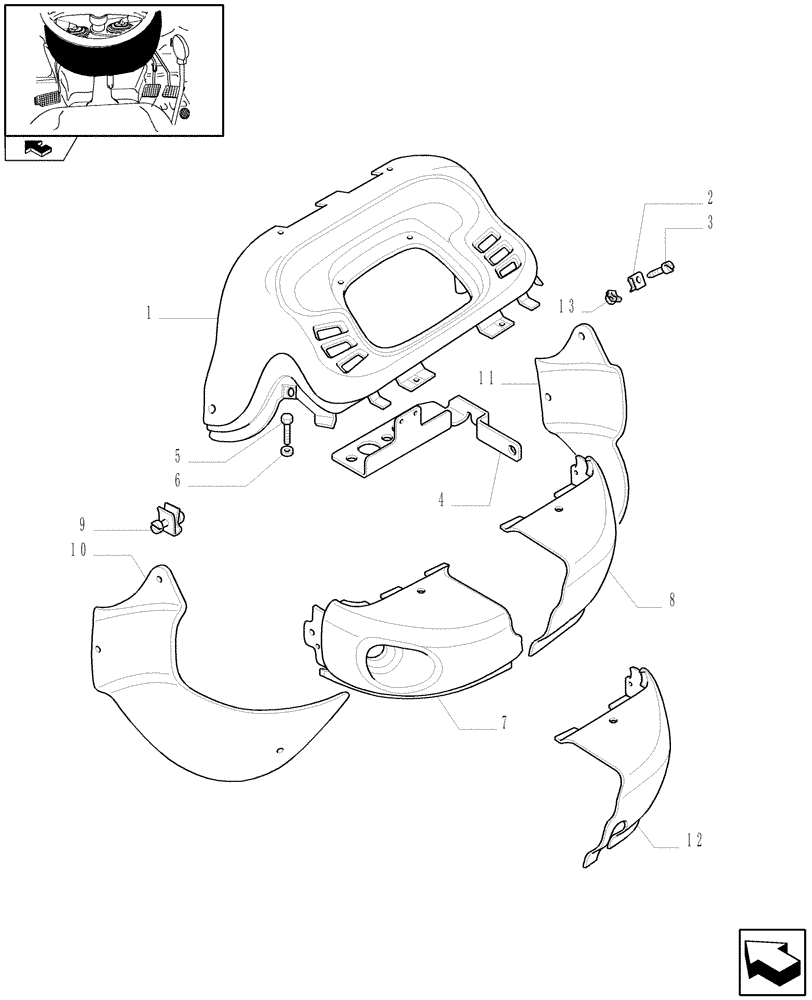

Запчасти Case IH FARMALL 85C (1.92.83) - FRONT CONSOLE TRIM (10) - OPERATORS PLATFORM/CAB

1

5199936

INSTRUMENT PANEL

1шт.

1

5199937

INSTRUMENT PANEL

1шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

2

14189974

BRACKET,J, #6

1шт.

2

5175702

NUT

2шт.

3

5182249

SELF-TAP SCREW,Pan Hd, M4.2 x 1.4 x 13mm

8x13

1шт.

4

47134737

BRACKET

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

6

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

7

5175855

COVER

LH

1шт.

8

87599490

BULKHEAD

RH

1шт.

9

5174673

FASTENER,12mm OD

6шт.

10

5175279

SIDE PANEL

LH

1шт.

11

5194913

SIDE PANEL

RH

1шт.

11

5175903

SIDE PANEL

RH

1шт.

For Front HPL Chassis Mounted, VAR.332323-335329

1шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

12

87599495

BULKHEAD

RH

1шт.

For Front HPL Chassis Mounted, VAR.332323-335329

1шт.

13

14372671

SPRING NUT,M4.2, U, 12.4mm long

2шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.
