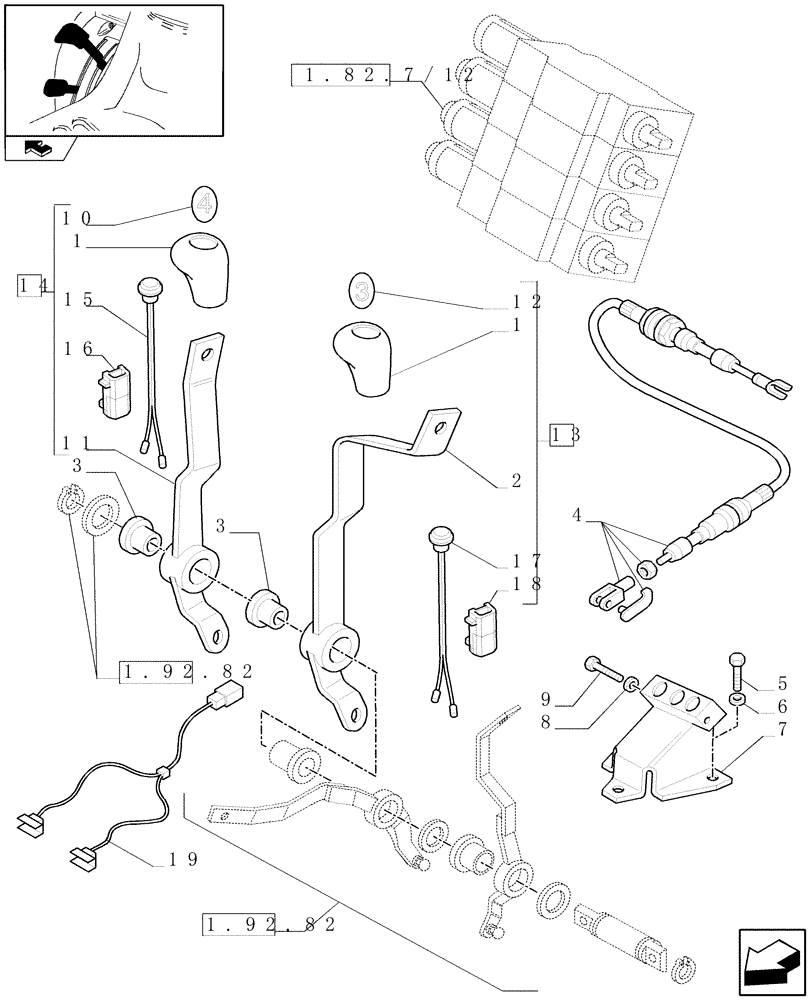

Запчасти Case IH FARMALL 85C (1.92.82/12) - 4 REAR REMOTE VALVES FOR MDC W/HYDRAULIC DIVIDER - LEVERS (VAR.330166) (10) - OPERATORS PLATFORM/CAB

1

84121634

KNOB

2шт.

2

84121956

LEVER

1st-4th Distr.

1шт.

3

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21 x 27 x 22

2шт.

4

5199209

CABLE,900mm L

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

7

47127691

SUPPORT

1шт.

8

14301624

HEX SOC SCREW,M5 x 70mm, Cl 8.8

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

47057202

EMBLEM

Ginger

1шт.

11

84122121

LEVER

3rd Distr.

1шт.

12

47057201

IDEOGRAM

Black

1шт.

13

84122699

LEVER

1шт.

14

84122698

LEVER

1шт.

15

84123781

SWITCH

1шт.

16

12484680

MULTIPOLE CONNECTOR,Female, 2 Pin

1шт.

17

5192432

SWITCH

1шт.

18

12483580

MULTIPOLE CONNECTOR

1шт.

19

84130690

ELECTRIC CABLE

1шт.
