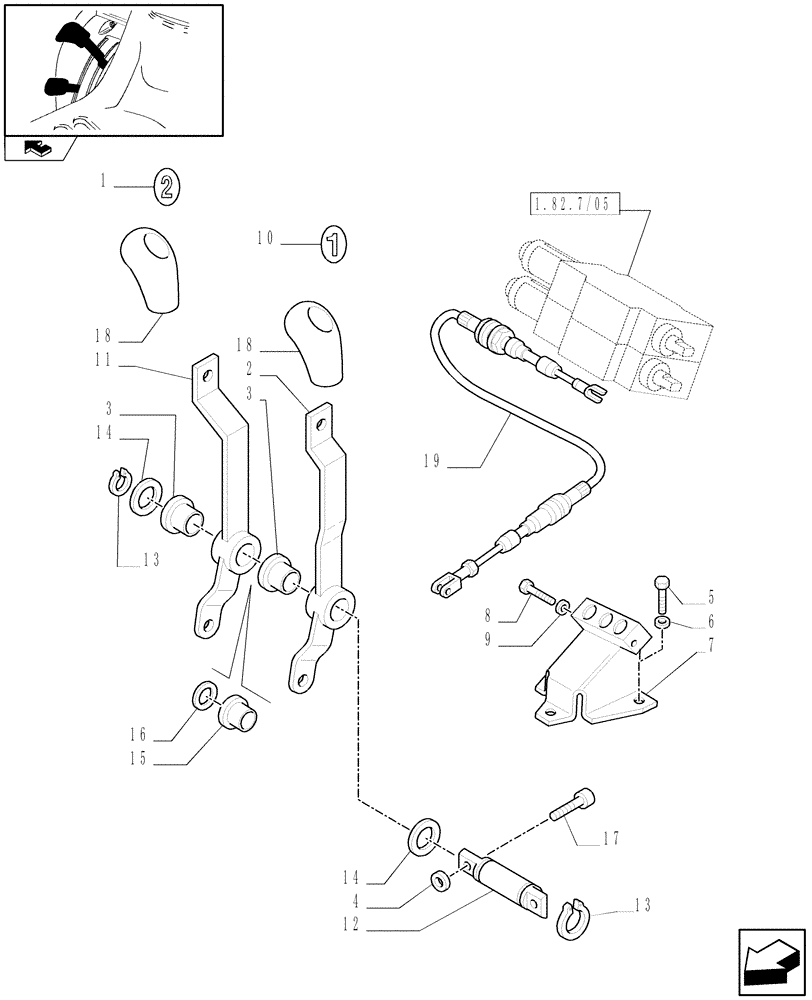

Запчасти Case IH FARMALL 85C (1.92.82/05) - CONTROL LEVERS FOR 2 REAR REMOTE VALVE FOR MID-MOUNT AND EDC - LEVER AND KNOB (VAR.333721) (10) - OPERATORS PLATFORM/CAB

1

47057200

IDEOGRAM

1шт.

2

47128520

LEVER

1st-3rd Distr.

1шт.

3

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21x27x22

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

7

47127691

SUPPORT

1шт.

8

14301624

HEX SOC SCREW,M5 x 70mm, Cl 8.8

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

47057199

IDEOGRAM

1шт.

11

47128519

LEVER

2nd-4th Distr.

1шт.

12

47127819

PIN

1шт.

13

11066974

SNAP RING,M21, Ext

D=21

2шт.

14

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

35x21x2

2шт.

15

5154839

SPACER,21mm ID x 35mm OD x 22mm L

21x35x2

2шт.

16

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21x35x2

1шт.

19

5199209

CABLE,900mm L

2шт.

17

5134736

SCREW,M8 x 22mm, Cl 8.8

M8x20

2шт.

18

47056482

KNOB

2шт.
