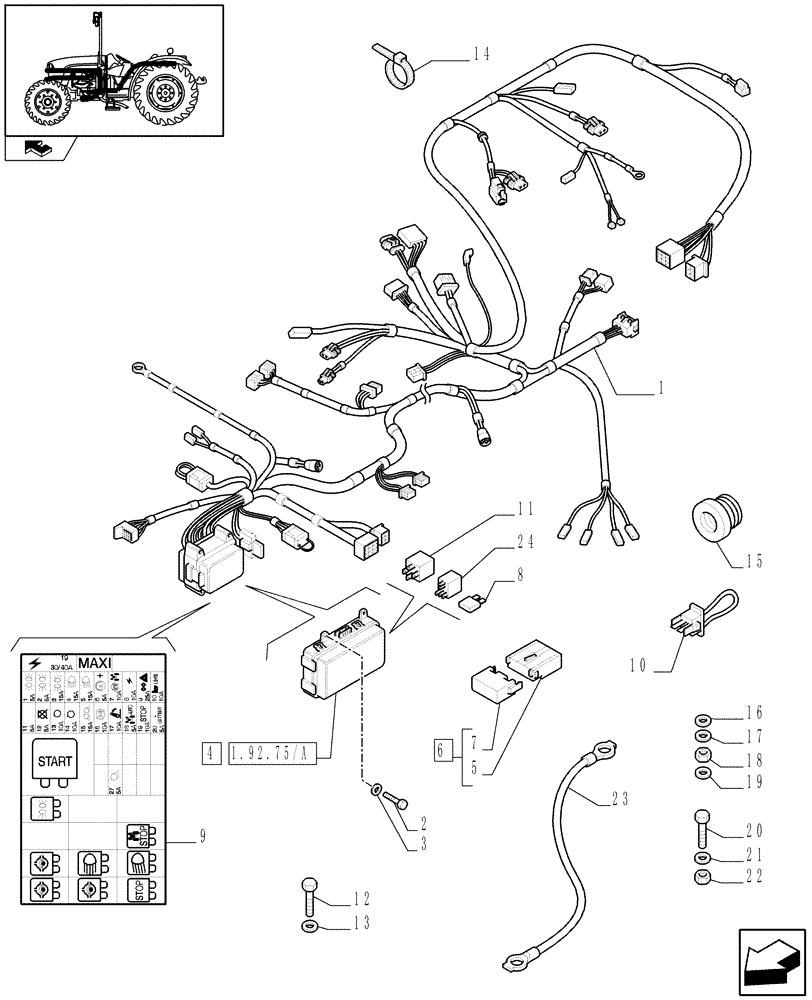

Запчасти Case IH FARMALL 85C (1.92.75/02[01]) - 4WD ELECTROHYDRAULIC COUPLING FOR MDC - ELECTRIC CONTROLS - L/CAB (VAR.330307-333307) (10) - OPERATORS PLATFORM/CAB

1

87362074

CABLE

, Serial Range: -C6502

1шт.

Main Harness

1шт.

1

84283302

ELECTRIC CABLE

, Start Serial: D6502

1шт.

Main Harness

1шт.

2

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

3

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5198692

FUSE HOLDER

1шт.

5

5173266

FUSE HOLDER

1шт.

6

5176999

COVER

1шт.

7

5173265

COVER

1шт.

8

10395890

FUSE,5A, Mini, Beige

5A

1шт.

8

87522597

FUSE,10A, Mini, Red

10A

1шт.

8

87524877

FUSE,15A, Mini, Blue

15A

1шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

8

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

9

87657028

DECAL

Fuse

1шт.

10

5189713

JUMPER

C18

1шт.

10

87360815

BRIDGE

C21

1шт.

Analogic/Digital Instrument with Clock for Mechanical Transm., VAR.330737-331737

1шт.

11

83989947

RELAY,70A

70A

1шт.

12

13279211

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 5.8, Full Thd

4шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

85805383

CABLE TIE

CABLE STRAP

28шт.

15

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

17

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

1шт.

18

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

19

10615774

WASHER

2шт.

20

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

21

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

22

15896414

NUT,M5, Cl 8

2шт.

23

87709755

TERMINAL

1шт.

Ground, Motor

1шт.

24

47127781

RELAY,12V, 20A, Micro, N.O.

20A

1шт.

24

82023238

RELAY,12V, 20A

15/25A

1шт.
