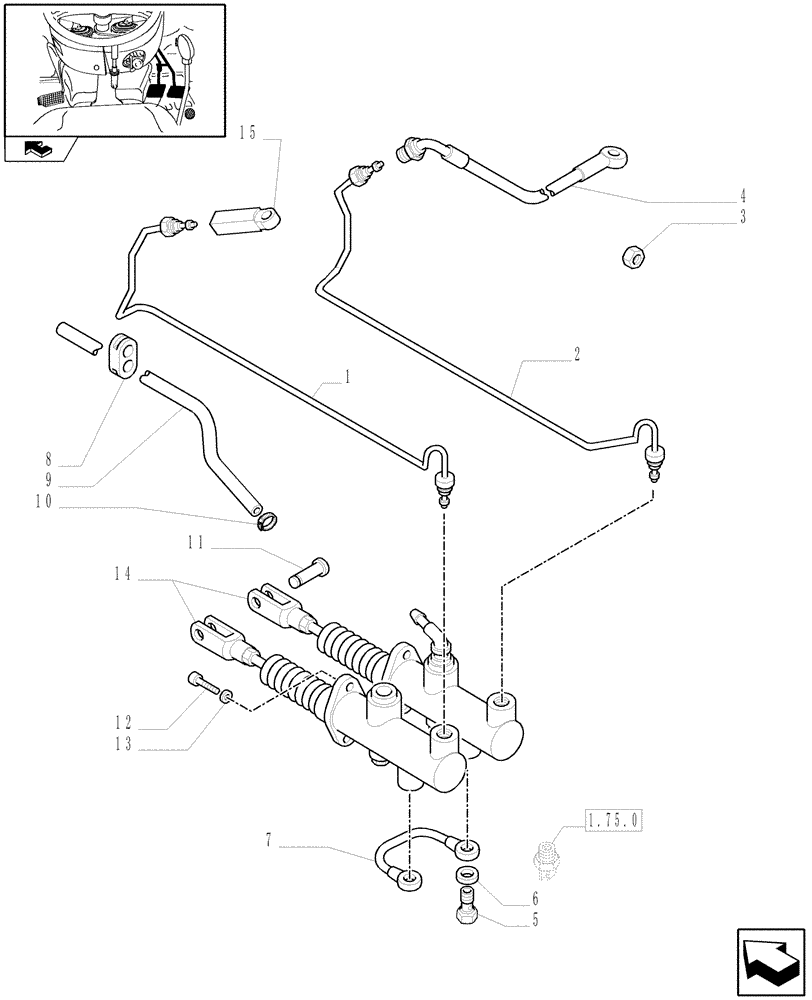

Запчасти Case IH FARMALL 85C (1.92.68[02]) - BRAKE PIPING (10) - OPERATORS PLATFORM/CAB

1

47134560

RIGID TUBE

RH

1шт.

2

47134562

RIGID TUBE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87303300

FLEXIBLE HOSE

RH

1шт.

4

47135829

FLEXIBLE HOSE

LH

1шт.

5

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12x22

2шт.

6

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

4шт.

7

5155701

TUBE

1шт.

8

5172724

INSULATING BLOCK,2x12.5mm ID x 13mm Thk

1шт.

9

82849374

HOSE,7mm ID x 1700mm L

1шт.

10

10186590

CLAMP,11mm - 13mm

2шт.

11

5155381

PIN,9.85mm OD x 28mm L

2шт.

12

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

14

87354670

MASTER CYLINDER

2шт.

15

47135804

HYD CONNECTOR

2шт.
