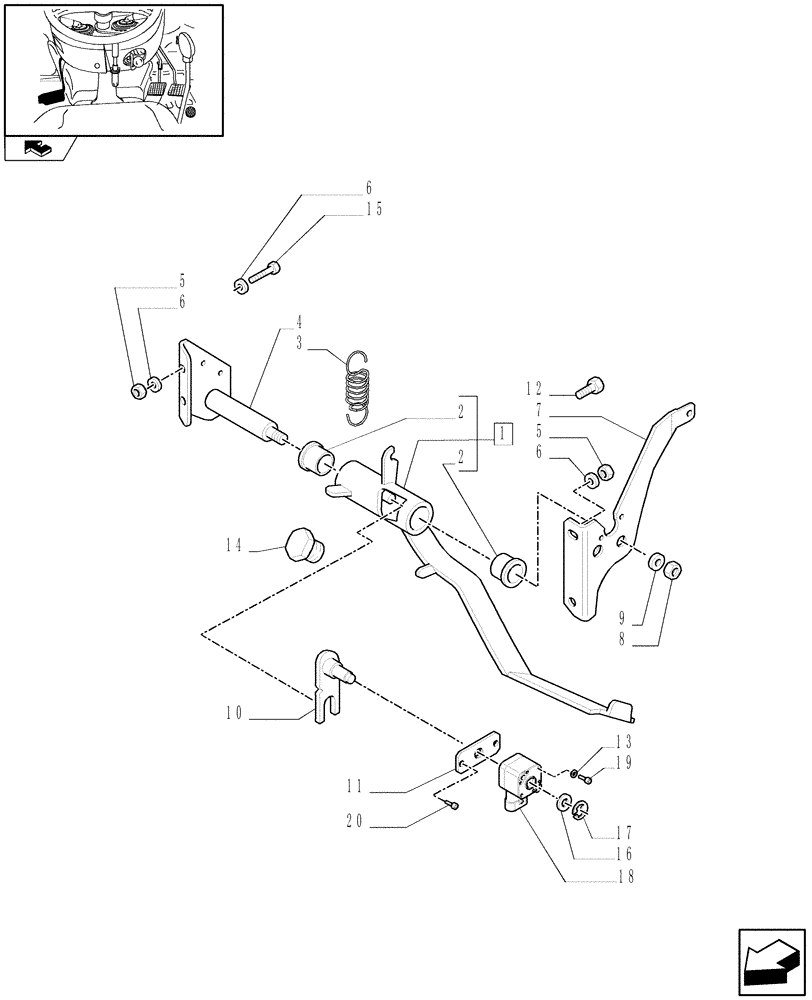

Запчасти Case IH FARMALL 85C (1.92.26/01) - 16X16 AND 32X16 HYDRAULIC TRANSMISSION - CLUTCH PEDAL (VAR.330275-330278) (10) - OPERATORS PLATFORM/CAB

1

5175165

PEDAL

ASSY

1шт.

2

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

2шт.

3

5177552

SPRING,51mm OD x 64mm L

1шт.

4

47130713

SUPPORT

RH

1шт.

5

16100824

NUT,M8, Cl 10

4шт.

6

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

7

47130711

SUPPORT

LH

1шт.

8

16101524

NUT,M12 x 1.25, Cl 10

1шт.

9

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

1шт.

10

47132765

SHAFT,39.55mm L

1шт.

11

47133571

PLATE

1шт.

12

13030421

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

13

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

14

5179011

PLUG,Hex, M32 x 2

4x9

2шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

11087876

CIRCLIP,M7

1шт.

18

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Universal

1шт.

16x16 Hydraulic trasmission, VAR.330278

1шт.

18

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Synchro)

1шт.

32x16 Hydraulic Trasmission, VAR.330275

1шт.

19

14358721

HEX SOC SCREW,M5 x 35mm, Cl 8.8

2шт.

20

13271911

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

2шт.
