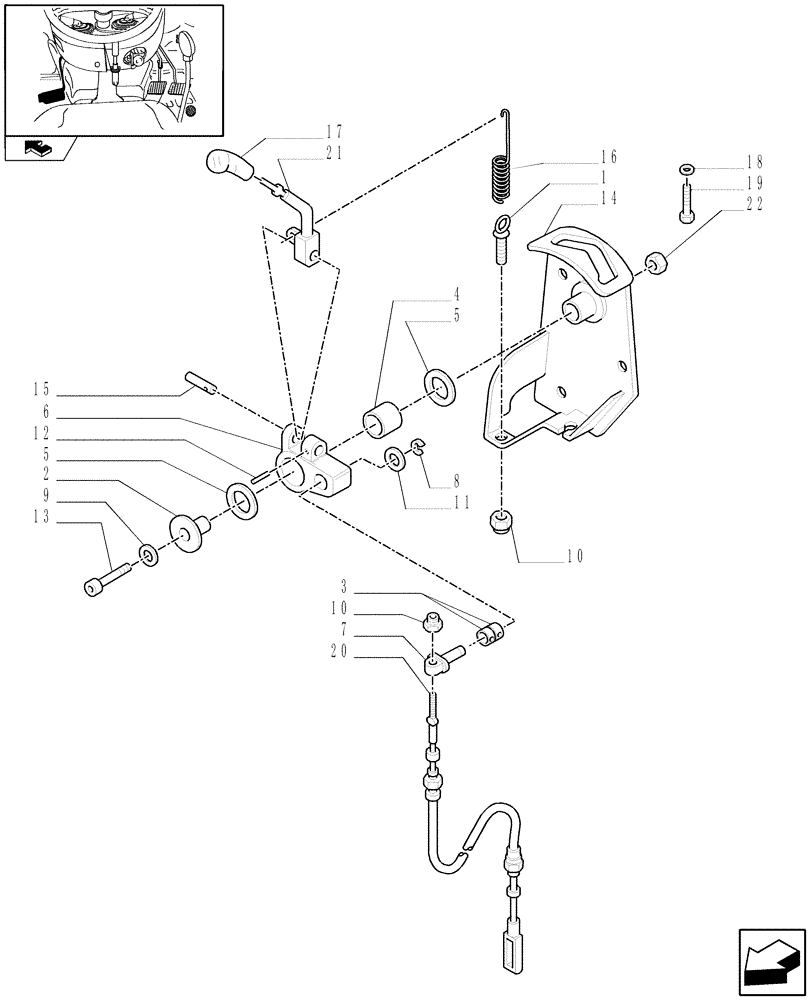

Запчасти Case IH FARMALL 85C (1.92.26[02]) - PTO CONTROLS (10) - OPERATORS PLATFORM/CAB

1

5115351

HOOK,M6 x 1

1шт.

2

5183865

BUSHING

1шт.

3

47743308

NYLON BEARING,Nylon, 8mm ID x 12mm OD x 13mm W

D=8

1шт.

4

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

5

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

2шт.

6

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

7

47131077

PIN,8mm

1шт.

8

11087871

CIRCLIP,M7

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

12574221

NUT,M6 x 1, Cl 10

2шт.

11

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

12

14159680

ROLL PIN

2.5 x 14

1шт.

13

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

1шт.

14

47123109

SUPPORT

1шт.

15

47123110

PIN,30mm x 6mm

1шт.

16

84206711

SPRING,Extension, 18mm OD x 110mm L

1шт.

17

5194972

KNOB

1шт.

18

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

19

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

20

47123120

CABLE

1шт.

21

5187788

SHIFTER FORK

1шт.

22

10725914

LOCK NUT,M6 x 1, Cl 04

2шт.
