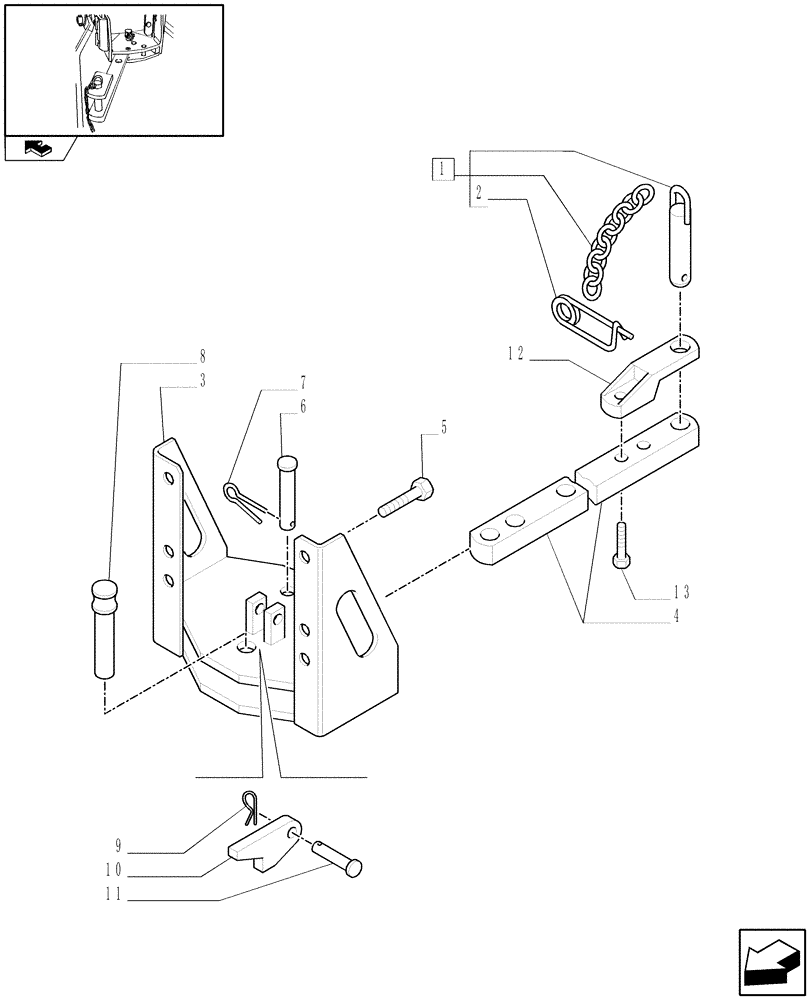

Запчасти Case IH FARMALL 85C (1.89.3/09) - TOW-BAR CAT."A" TOW HOOK 33MM. WITH CLEVIS (VAR.330896) (09) - IMPLEMENT LIFT

1

5163732

PIN,32mm OD x 182mm L

D=33

1шт.

2

5152004

HAIR PIN COTTER,195mm L

1шт.

3

5186876

SUPPORT

1шт.

4

47123842

DRAWBAR,641mm L x 60mm W x 40mm Thk

D=33

1шт.

5

11376224

BOLT,Hex, M16 x 1.5 x 35, 8.8, Full Thd

6шт.

6

5187029

PIN,18mm OD x 92mm L

81MM

2шт.

7

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

8

5186858

PIN,22mm OD x 114mm L

1шт.

9

10796404

COTTER PIN,M3.2 x 18

1шт.

10

5130621

LEVER

1шт.

11

5130620

PIN,10mm OD x 34mm L

1шт.

12

5151269

CLEVIS,220mm L x 110mm W x 30mm Thk, 80mm Offset

D=33

1шт.

13

15984731

BOLT,Hex, M18 x 1.5 x 75mm, Cl 10.9

2шт.
