Запчасти Case IH FARMALL 85C (1.82.8/01) - HPL WITH MECHANICAL/ELECTRONIC DRAFT CONTROL FOR APUH - CONNECTION SHAFT (VAR.331127-333127-330128) (07) - HYDRAULIC SYSTEM

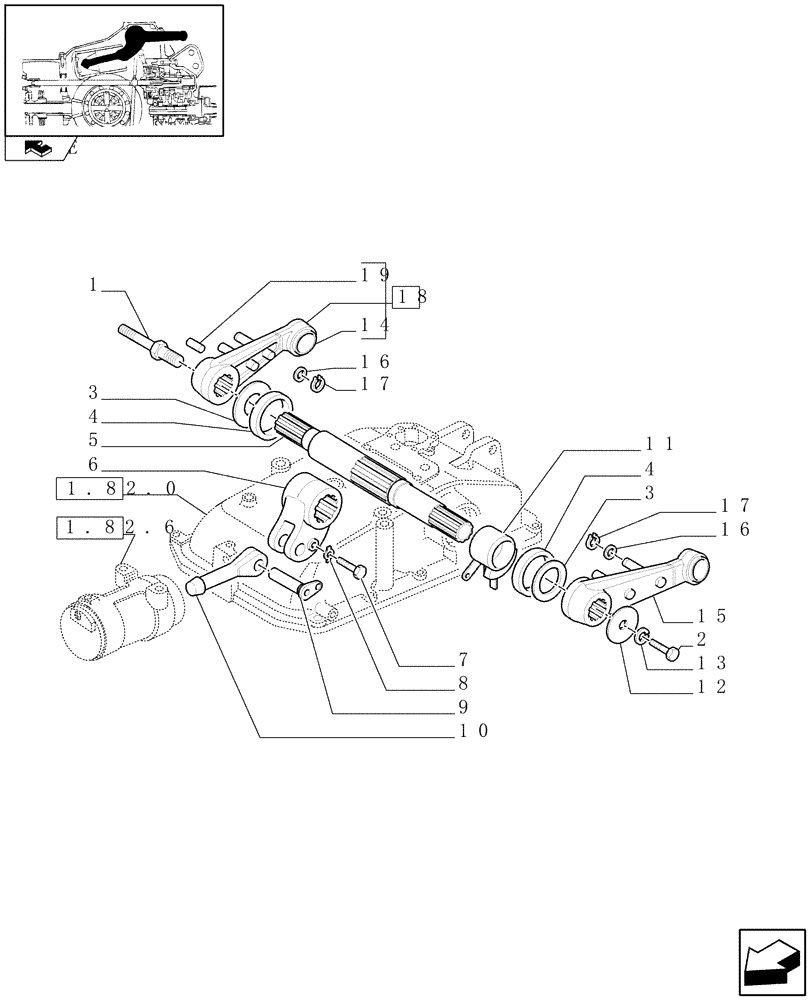

Схема запчастей Case IH FARMALL 85C - (1.82.8/01) - HPL WITH MECHANICAL/ELECTRONIC DRAFT CONTROL FOR APUH - CONNECTION SHAFT (VAR.331127-333127-330128) (07) - HYDRAULIC SYSTEM
6
3
4
1.82.6
home
10
1.82.0
5
13
9
19
16
2
17
17
3
14
4
7
1
16
12
15
11
8
18

Артикул

Название

Примечание

Количество

1

5176285

BOLT,M10 X 1.25 X 23mm - M14 X 1.25 X 30mm

1шт.

2

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

3

5125649

SPACER,47mm ID x 85mm OD x 6mm L

2шт.

4

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

48 x 65 x 10

2шт.

5

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

6

5176633

ARM

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

14198810

LOCKING PLATE,M10

D=10

1шт.

9

5176612

PIN,60mm L

1шт.

10

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

11

5176643

RING,48mm ID x 63mm OD x 49.5mm Thk

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

11

5196478

RING

, Start Serial: D6081

1шт.

HPL with Electronic Draft Control for APUH, VAR.331127-333127

1шт.

12

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

13

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

14

5180289

LIFT ARM

RH, Serial Range: -C6081

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

14

87756882

LIFT ARM

RH, Start Serial: D6081

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

14

5186780

LIFT ARM

RH

1шт.

HPL with Electronic Draft Control for APUH, VAR.331127-333127

1шт.

15

5180290

LIFT ARM

LH

1шт.

16

5148062

THRUST WASHER

25.5x38x2

2шт.

17

11067374

CIRCLIP,M25

2шт.

18

84122689

ARM

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

19

10335010

DOWEL,M5 x 22

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

Выбрано товаров: 29
