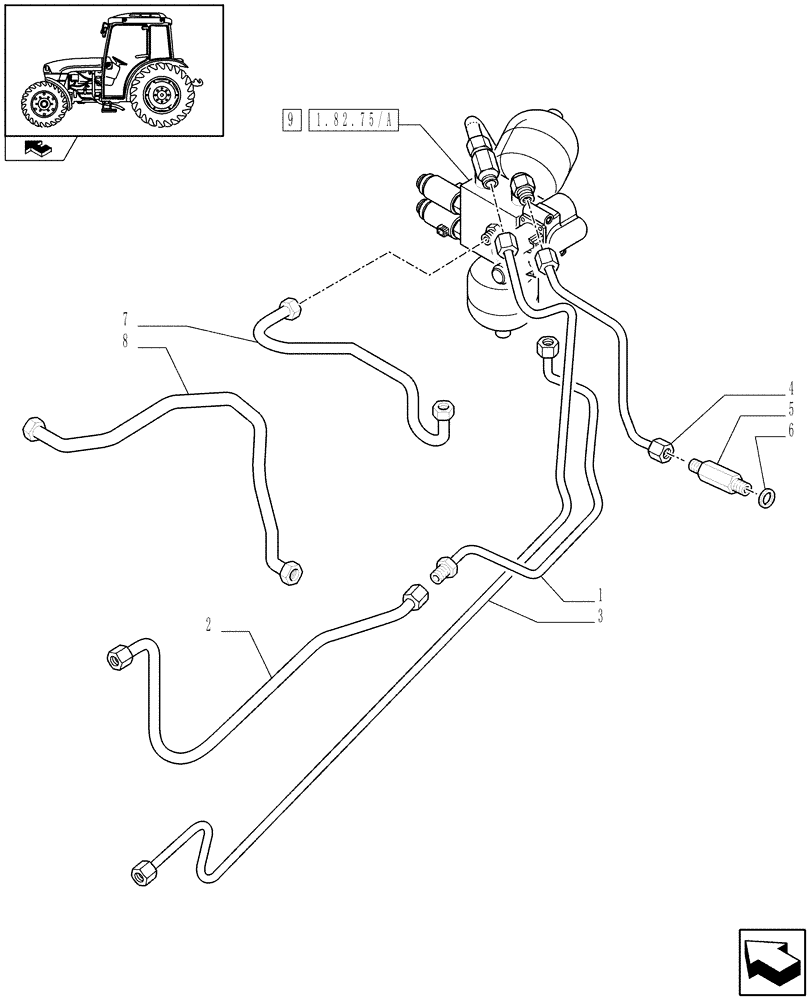

Запчасти Case IH FARMALL 85C (1.82.75/01) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - PIPES (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM

1

47057151

RIGID TUBE

1шт.

Front HPL and PTO Axle Mounted with El. Control and Mid-Mount Remotes, VAR.332848

1шт.

Front HPL and PTO Axle Mounted with El. Control , VAR.330848

1шт.

1

47057152

RIGID TUBE

1шт.

Front HPL and PTO Axle Mounted with El. Control, Mid-Mount Remotes and Hydr. Trailer Brake, VAR.333848

1шт.

Front HPL and PTO Axle Mounted with El. Control and Hydraulic Trailer Brake, VAR.331848

1шт.

2

87309269

RIGID TUBE

1шт.

Front HPL and PTO Axle Mounted with El. Control and Mid-Mount Remotes, VAR.332848

1шт.

Front HPL and PTO Axle Mounted with El. Control , VAR.330848

1шт.

3

87745323

RIGID TUBE,1604.5, 300 mm L

1шт.

4

47056866

RIGID TUBE

1шт.

5

5171534

HYD CONNECTOR,7/8" - 14 JIC x M18 x 1.5 ORB

1шт.

6

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

47057153

RIGID TUBE

1шт.

Front HPL and PTO Axle Mounted with El. Control , VAR.330848

1шт.

Front HPL and PTO Axle Mounted with El. Control and Hydraulic Trailer Brake, VAR.331848

1шт.

8

87310459

HYD TUBE,18 mm OD

1шт.

Front HPL and PTO Axle Mounted with El. Control and Mid-Mount Remotes, VAR.332848

1шт.

Front HPL and PTO Axle Mounted with El. Control, Mid-Mount Remotes and Hydr. Trailer Brake, VAR.333848

1шт.

9

47057172

BLOCK

ASSY

1шт.
