Запчасти Case IH FARMALL 85C (1.82.7/18) - 4 DELUXE FAST CONNECTORS AND OIL COLLECTION SYSTEM FOR 2 CONTROL VALVES (VAR.330544) (07) - HYDRAULIC SYSTEM

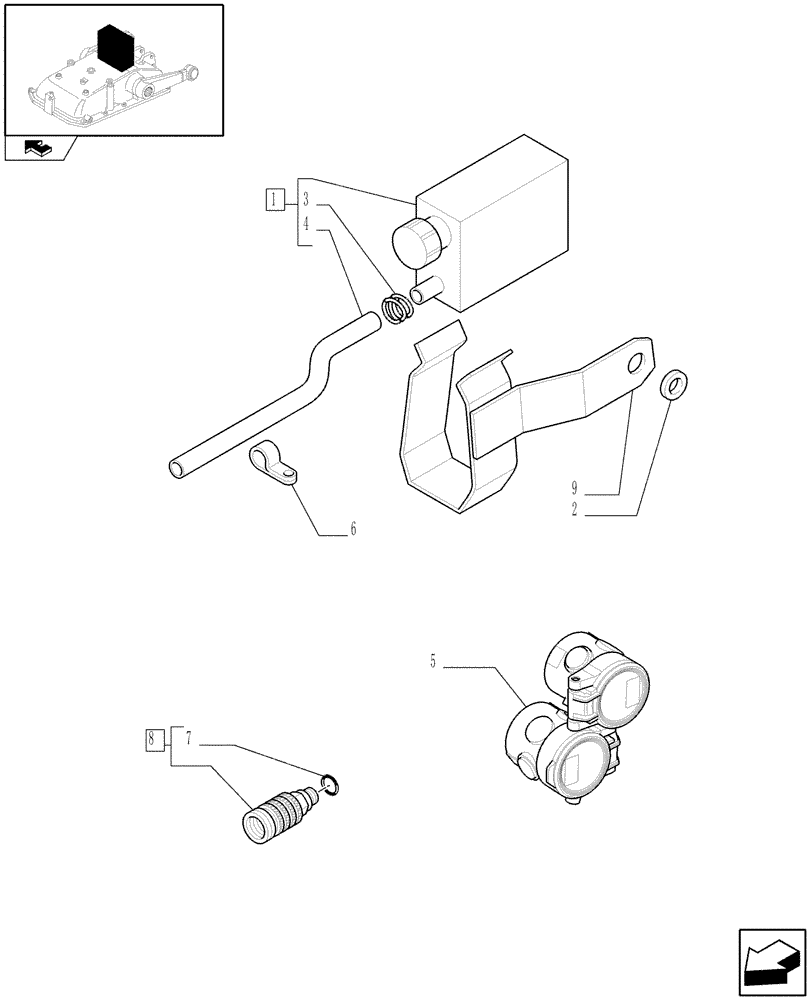

Схема запчастей Case IH FARMALL 85C - (1.82.7/18) - 4 DELUXE FAST CONNECTORS AND OIL COLLECTION SYSTEM FOR 2 CONTROL VALVES (VAR.330544) (07) - HYDRAULIC SYSTEM
6
4
5
3
home
8
1
2
9
7

Артикул

Название

Примечание

Количество

1

47133028

PAN,0.3L

2шт.

2

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

3

13423371

HOSE CLAMP,13.6mm - 15.1mm

15.1-13.6

1шт.

4

19308980

HOSE,7.50 mm ID x 525.00 mm

1шт.

5

47132632

PLUG

2шт.

6

5132413

COLLAR

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

9

47136266

BRACKET

RH

1шт.

9

47132383

BRACKET

LH

1шт.

Выбрано товаров: 11
