(1.82.7/15[06]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK FOR ELECTRONIC FRONT HPL - PIPES (VAR.331124-331125)

Запчасти Case IH FARMALL 85C (1.82.7/15[06]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK FOR ELECTRONIC FRONT HPL - PIPES (VAR.331124-331125) (07) - HYDRAULIC SYSTEM

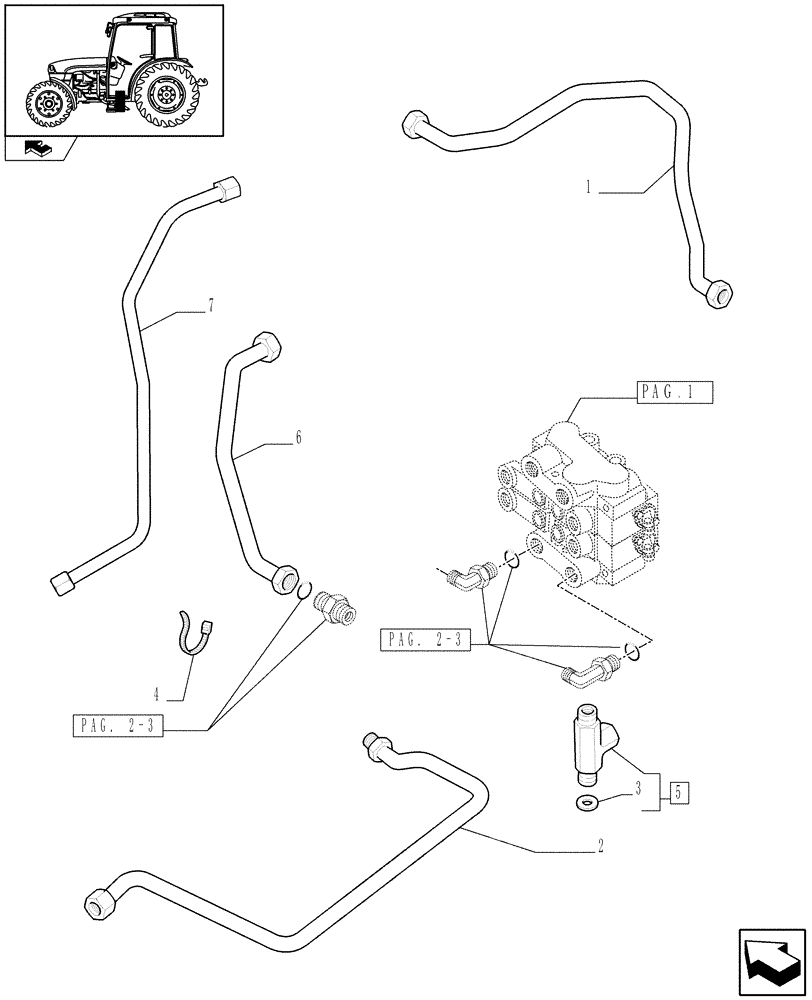

Схема запчастей Case IH FARMALL 85C - (1.82.7/15[06]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK FOR ELECTRONIC FRONT HPL - PIPES (VAR.331124-331125) (07) - HYDRAULIC SYSTEM
pag. 2-3
1
5
3
6
2
home
p
.
a
4
7
g
1
pag. 2-3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87310459

HYD TUBE,18 mm OD

1шт.

2

47126969

RIGID TUBE

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

5

5155596

3 WAY CONNECTION

M18x1.5

1шт.

6

47130292

RIGID TUBE

1шт.

7

87351005

RIGID TUBE

1шт.

Выбрано товаров: 7
