(1.82.7/14[05]) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - PIPES (VAR.331166)

Запчасти Case IH FARMALL 85C (1.82.7/14[05]) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - PIPES (VAR.331166) (07) - HYDRAULIC SYSTEM

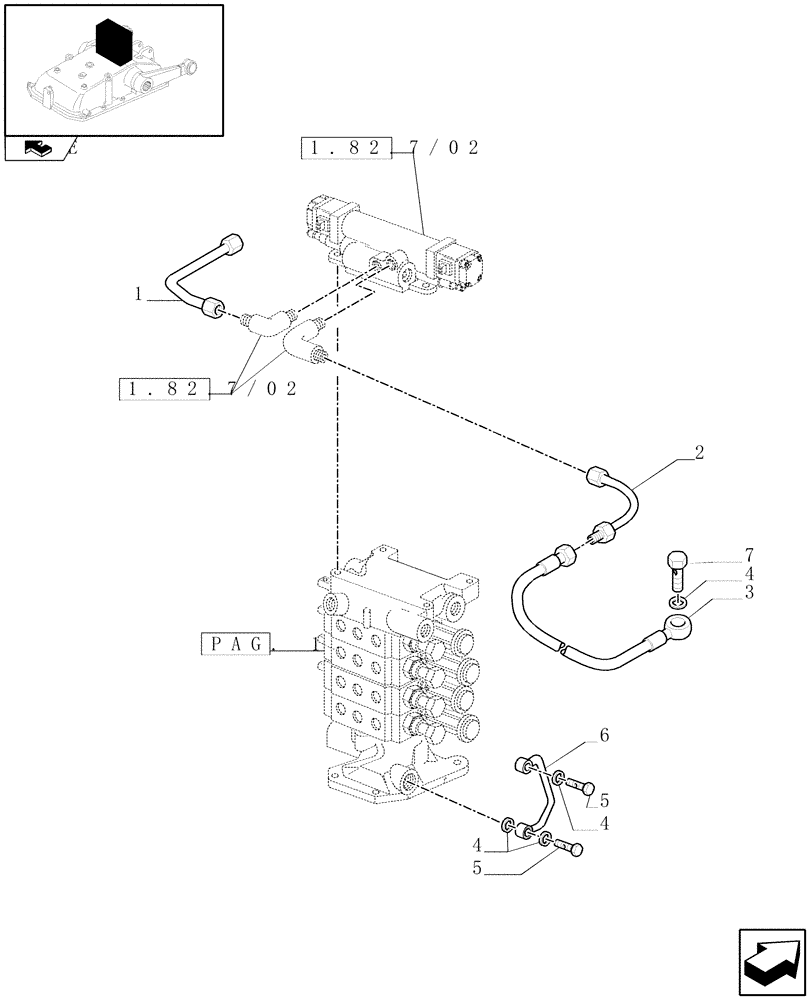

Схема запчастей Case IH FARMALL 85C - (1.82.7/14[05]) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - PIPES (VAR.331166) (07) - HYDRAULIC SYSTEM
6
4
4
pag. 1
home
1.82.7/02
1.82.7/02
3
5
7
4
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174040

RIGID TUBE

D=6

1шт.

2

47131635

RIGID TUBE

Center Pilot

1шт.

3

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1110MM

1шт.

Front Pilot Hose

1шт.

4

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

5

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

6

5178032

RIGID TUBE

1шт.

7

84196125

BANJO BOLT,Hex, M12 x 1.5

1шт.
