Запчасти Case IH FARMALL 85C (1.82.7/11[03]) - 4 REAR REMOTE VALVES FOR MDC - QUICK COUPLING (VAR.330165) (07) - HYDRAULIC SYSTEM

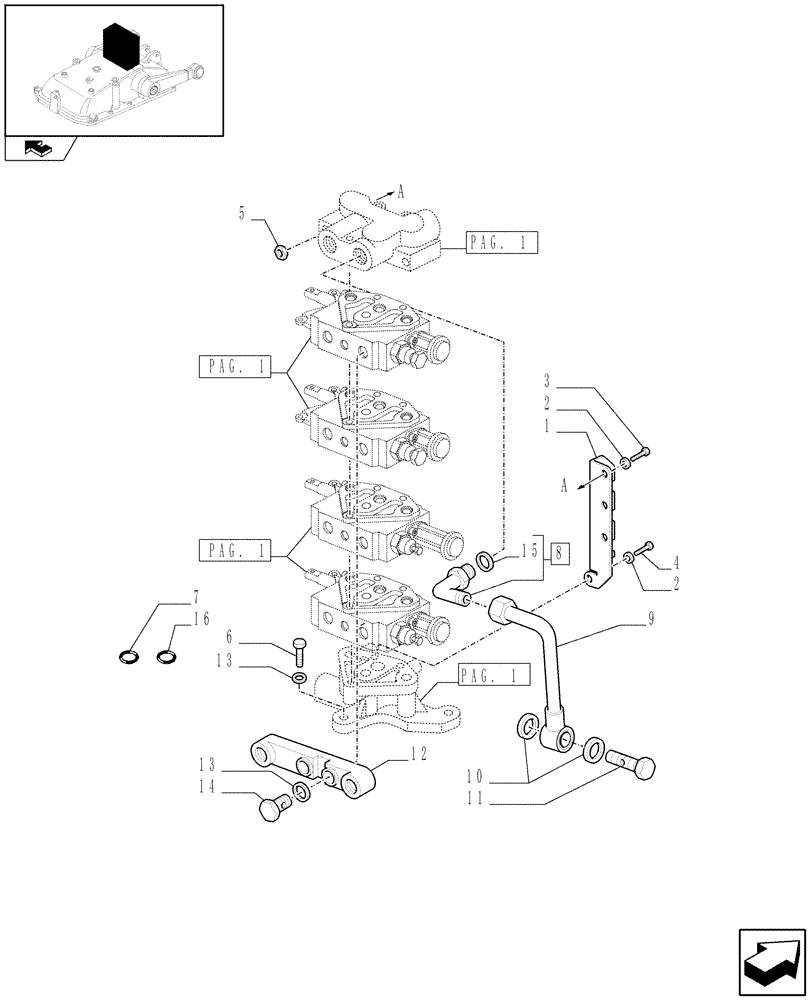

Схема запчастей Case IH FARMALL 85C - (1.82.7/11[03]) - 4 REAR REMOTE VALVES FOR MDC - QUICK COUPLING (VAR.330165) (07) - HYDRAULIC SYSTEM
a
2
6
7
1
2
a
3
5
13
8
9
14
15
4
13
12
16
pag. 1
home
pag. 1
pag. 1
pag. 1
11
10

Артикул

Название

Примечание

Количество

1

5179944

CONSOLE

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

12164714

NUT,M10 x 1.25, Cl 8

1шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

8шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

M22x1.5

1шт.

9

5175940

RIGID TUBE

1шт.

10

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

12

5185533

HYD CONNECTOR

4шт.

13

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

9шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

8шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

16

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

8шт.

Выбрано товаров: 17
