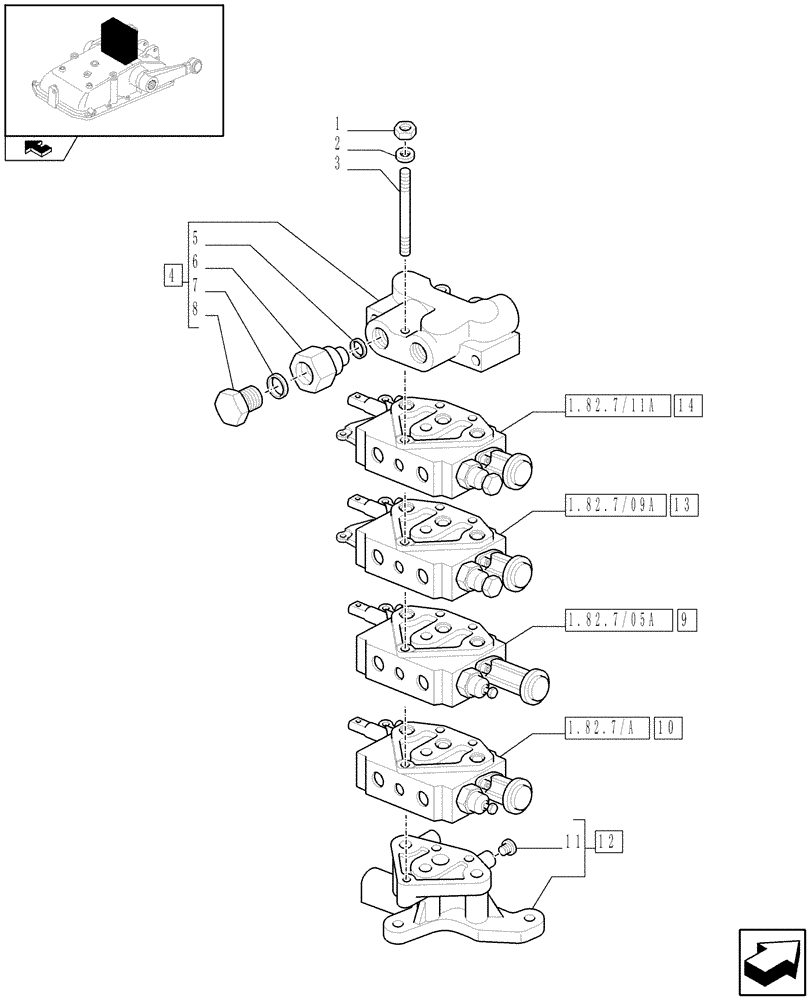

Запчасти Case IH FARMALL 85C (1.82.7/11[01]) - 4 REAR REMOTE VALVES FOR MDC - CONTROL VALVES (VAR.330165) (07) - HYDRAULIC SYSTEM

1

5116857

NUT,3/8" - 24

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

87397264

SUPPORT

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

87396877

CONTROL VALVE

ASSY

1шт.

S/D W/Autom.Kick-Out & Float

1шт.

10

87396881

CONTROL VALVE

ASSY

1шт.

S/D W/Autom.Kick-Out

1шт.

11

10269650

PLUG

M16x1.5

1шт.

12

5176800

FLANGE

1шт.

13

87396851

CONTROL VALVE

ASSY

1шт.

S/D W/Float.

1шт.

14

87396855

CONTROL VALVE

ASSY

1шт.

S/D

1шт.
