Запчасти Case IH FARMALL 85C (1.82.7/05A[01]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR WITH FLOAT AND AUTOMATIC CUTOUT - BREAKDOWN (07) - HYDRAULIC SYSTEM

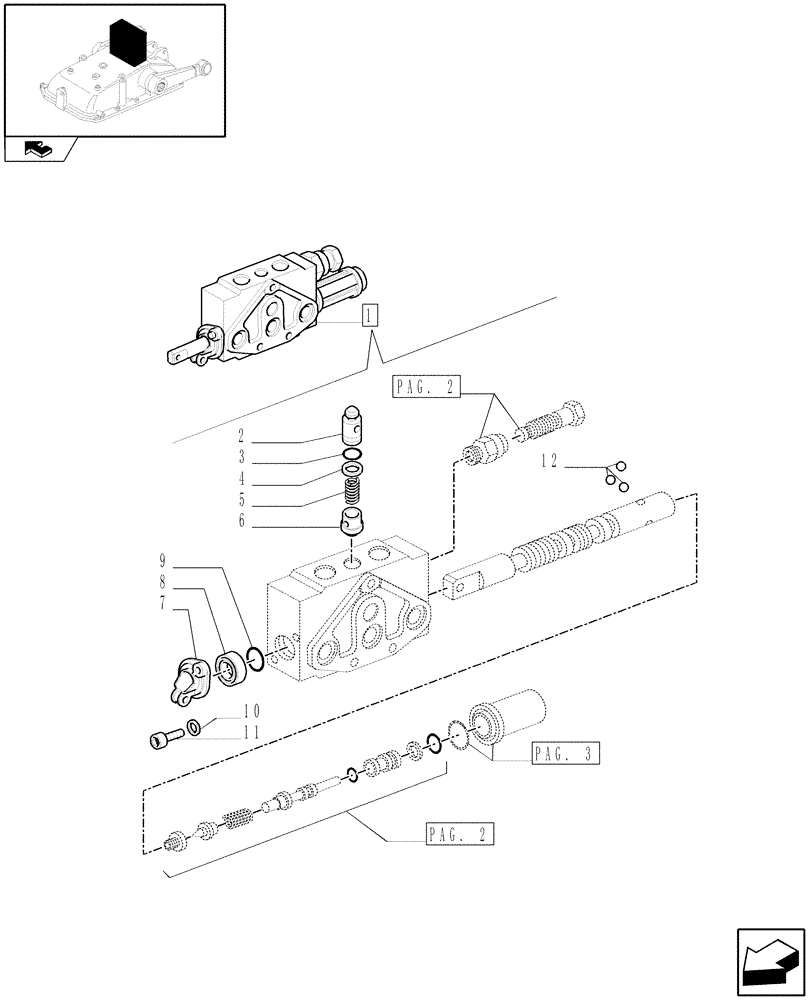

Схема запчастей Case IH FARMALL 85C - (1.82.7/05A[01]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR WITH FLOAT AND AUTOMATIC CUTOUT - BREAKDOWN (07) - HYDRAULIC SYSTEM
2
8
11
4
6
7
12
10
9
5
3
pag. 3
home
pag. 2
pag. 2
1

Артикул

Название

Примечание

Количество

1

87396877

CONTROL VALVE

ASSY, S/D W/Autom.Kick-Out & Float

1шт.

2

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

3

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

4

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

7

5116887

SUPPORT

1шт.

8

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

9

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

12

20063420

BALL,3.96mm OD, Gr 100

D=5/32

3шт.

Выбрано товаров: 12
