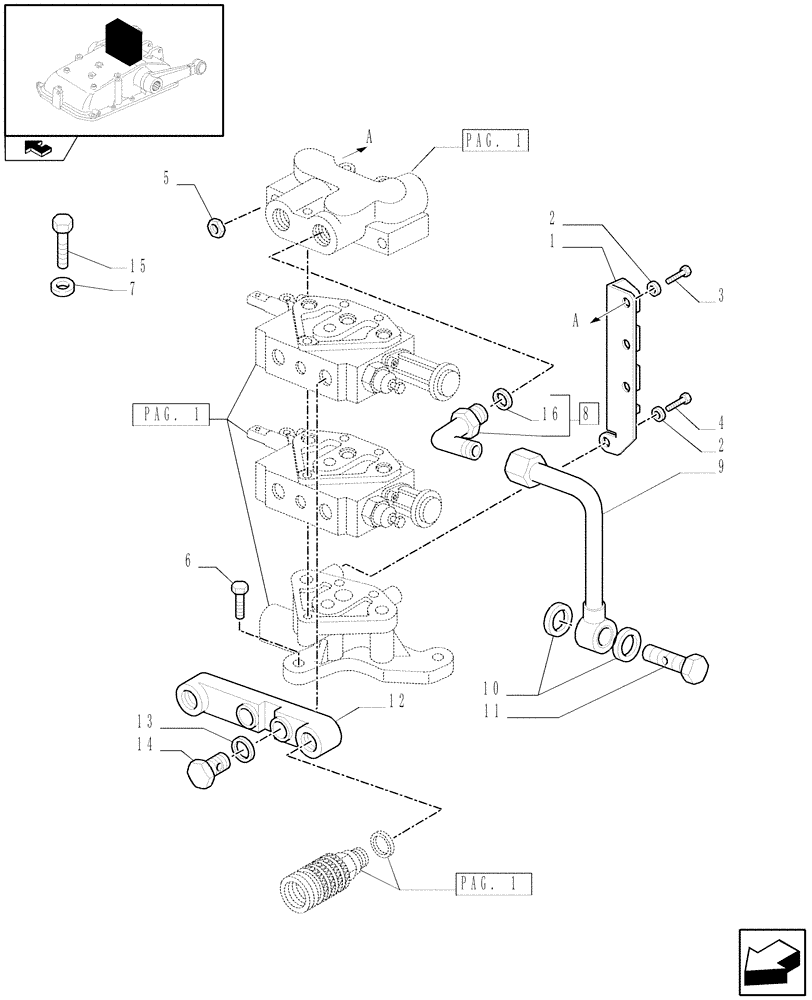

Запчасти Case IH FARMALL 85C (1.82.7/05[03]) - 2 REAR REMOTE VALVES - BRACKETS, UNION AND QUICK COUPLING (VAR.330108) (07) - HYDRAULIC SYSTEM

1

5178435

BRACKET

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

12164714

NUT,M10 x 1.25, Cl 8

1шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

1шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

9

5173694

RIGID TUBE

M22x1.5

1шт.

10

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

12

5185533

HYD CONNECTOR

2шт.

13

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

4шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

4шт.

15

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
