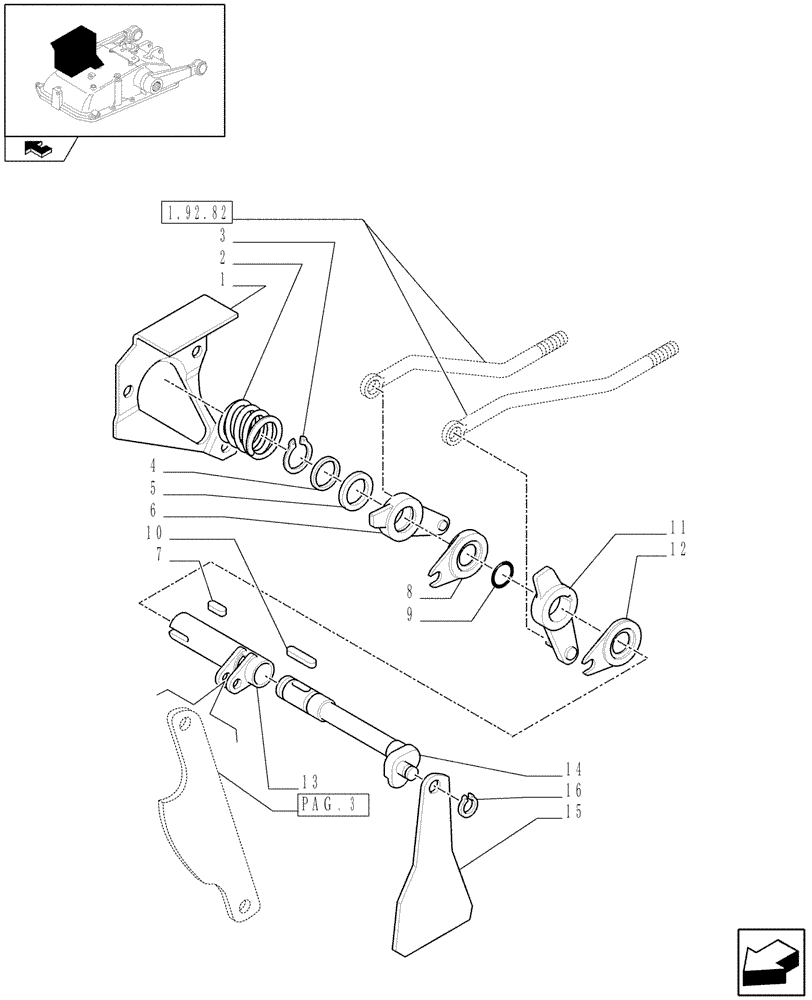

Запчасти Case IH FARMALL 85C (1.82.5[01]) - LIFT CONTROL (07) - HYDRAULIC SYSTEM

1

5176287

PLATE

1шт.

2

4952761

SPRING,Compression, 34mm OD x 25.5mm L

1шт.

3

11066276

SNAP RING,M14, Ext

1шт.

4

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

5

5165368

SHIM,22.2mm ID x 35mm OD x 2.5mm Thk

1шт.

6

5175668

HUB

Position

1шт.

7

10617610

KEY,5mm x 5mm x 10mm

1шт.

8

5165246

PLATE

Center

1шт.

9

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

10

14721010

KEY,4mm x 4mm x 14mm

1шт.

11

5175666

HUB

Draught

1шт.

12

5165184

PLATE

1шт.

13

5173355

SHAFT,14/15.5mm ID x 22/23mm OD x 117.5mm L

1шт.

14

5173353

SPINDLE,162mm L

1шт.

15

5117143

LEVER

1шт.

16

11065976

CIRCLIP,M10, Ext

1шт.
