Запчасти Case IH FARMALL 85C (1.82.4[01]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN - C6635 (07) - HYDRAULIC SYSTEM

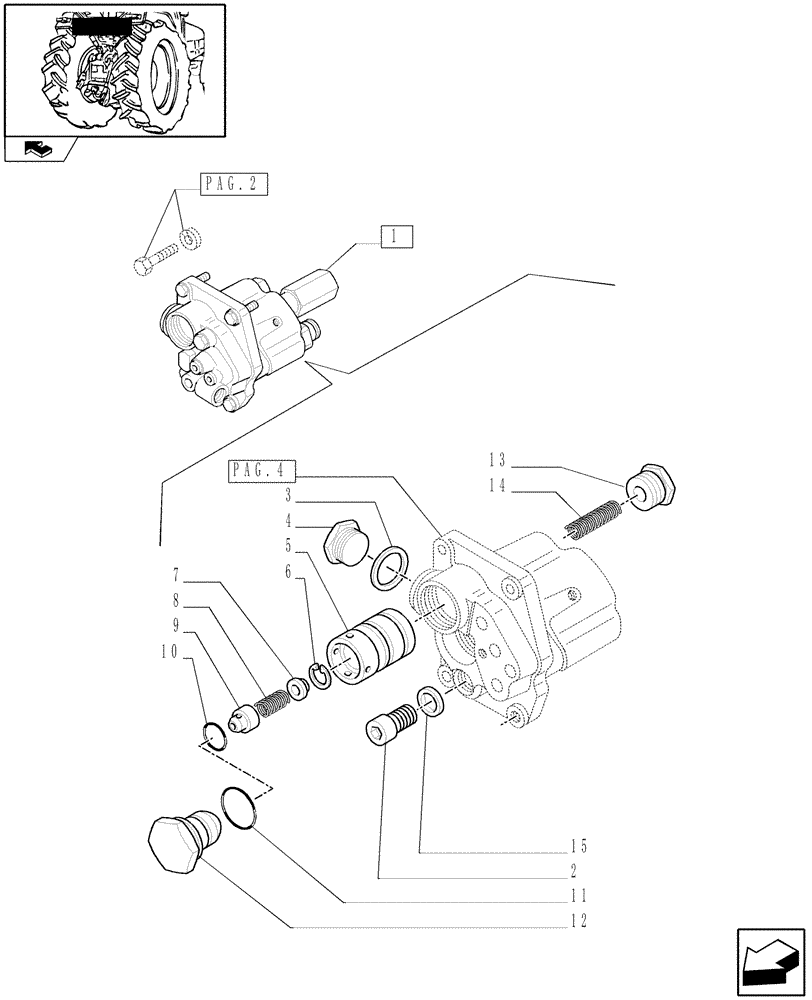

Схема запчастей Case IH FARMALL 85C - (1.82.4[01]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN - C6635 (07) - HYDRAULIC SYSTEM
9
pag.2
4
pag.4
7
home
2
15
13
14
12
1
5
11
10
8
6
3

Артикул

Название

Примечание

Количество

1

47124174

CONTROL VALVE

ASSY

1шт.

84277583R

REMAN-HYD VALVE

FARMALL 85C, FARMALL 95C BOTH (1/07), Reman For New P/N 47124174

1шт.

84277583C

CORE-VALVE HYD

Return Number

1шт.

2

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

4

10275011

PLUG,M22 x 1.5 x 13

1шт.

5

5117731

SPOOL

1шт.

6

13420376

SNAP RING,M12, Int

1шт.

7

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

1шт.

8

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

1шт.

9

5117732

PIN,10.5mm OD x 15.5mm L

1шт.

10

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

(M17.12 ID x 2.62 Thk)

1шт.

11

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

12

5122029

PLUG,M32 x 1.5

1шт.

13

5117734

PLUG,M20 x 1.5

1шт.

14

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

15

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER 12x18x1

1шт.

Выбрано товаров: 17
