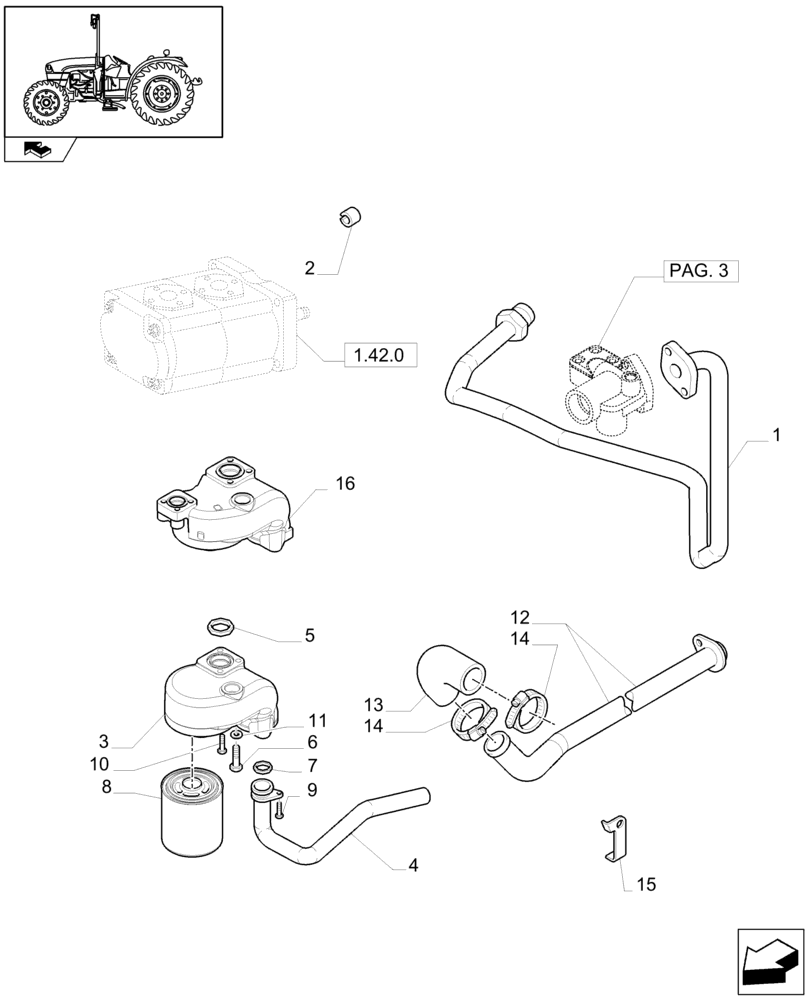

Запчасти Case IH FARMALL 85C (1.82.1[02]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

87369236

RIGID TUBE,18 mm OD x 557, 348.8 mm L

1шт.

2

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.

3

47129567

FILTER HEAD

, Serial Range: -C7248

1шт.

4

87309264

RIGID TUBE,45 mm OD

Front Suction

1шт.

4

87309600

RIGID TUBE,45 mm OD

1шт.

With Waterproof Transmission, VAR.332448-333448-330449

1шт.

5

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

6

14309020

HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8

1шт.

7

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

8

84257511

HYDRAULIC OIL FILTER,138.00mm OD

1шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

2852057

SEALING WASHER,M8 x 12 x 1 Thk

SEAL WASHER

1шт.

12

87309262

RIGID TUBE,45 mm OD

1шт.

13

5188195

ELBOW,45mm ID x 145mm L

1шт.

14

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

3шт.

14

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

D=40-60

2шт.

14

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

15

5180008

BRACKET

1шт.

16

84174075

SUPPORT

, Start Serial: D7248

1шт.
