(1.82.0/01) - HPL WITH ELECTRONIC DRAFT CONTROL - COVER (VAR.330127-331127-332127-333127)

Запчасти Case IH FARMALL 85C (1.82.0/01) - HPL WITH ELECTRONIC DRAFT CONTROL - COVER (VAR.330127-331127-332127-333127) (07) - HYDRAULIC SYSTEM

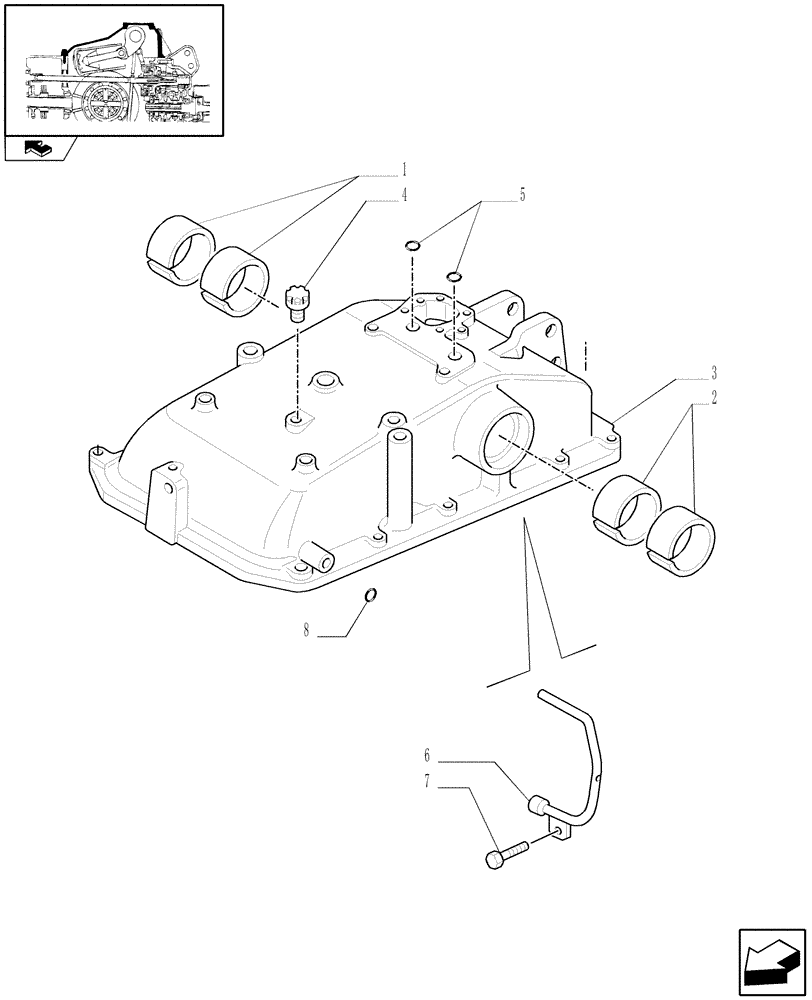

Схема запчастей Case IH FARMALL 85C - (1.82.0/01) - HPL WITH ELECTRONIC DRAFT CONTROL - COVER (VAR.330127-331127-332127-333127) (07) - HYDRAULIC SYSTEM
6
1
5
3
4
home
7
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

2

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

3

87382594

BODY

Incl. 1, 2

1шт.

4

9636958

BREATHER

1шт.

5

14457581

O-RING,0.799" ID x 0.103" Width

2шт.

6

5183490

RIGID TUBE

1шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

Выбрано товаров: 8
