Запчасти Case IH FARMALL 85C (1.81.9/02[01]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - SUPPORTS AND ARMS (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM

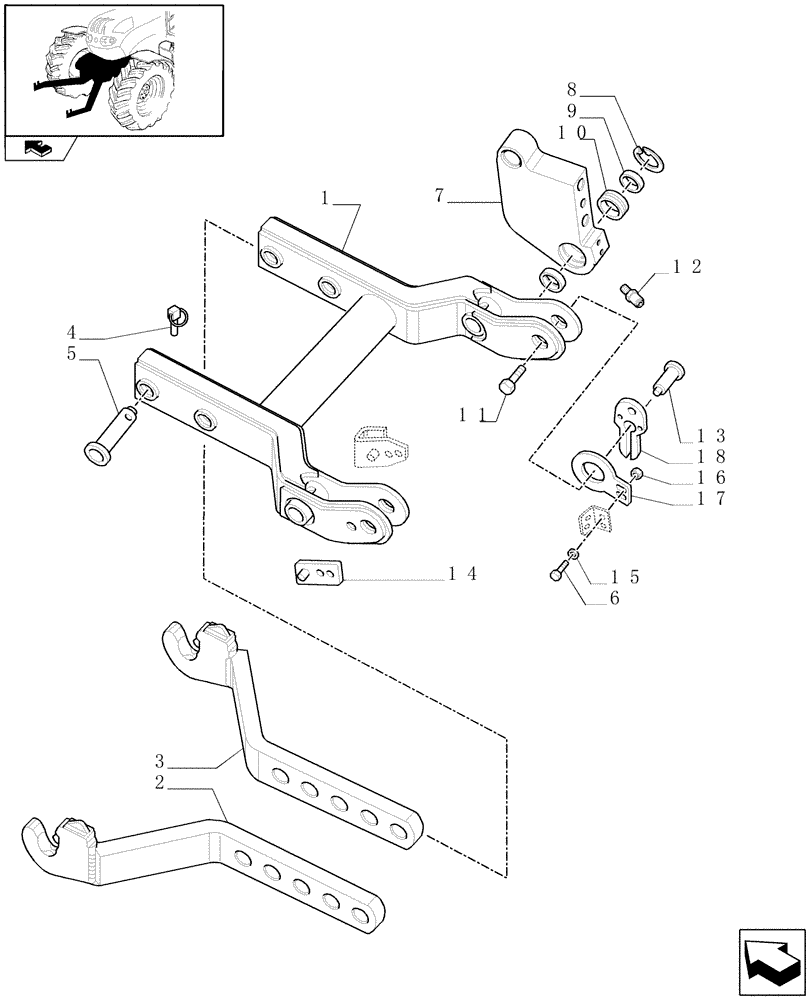

Схема запчастей Case IH FARMALL 85C - (1.81.9/02[01]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - SUPPORTS AND ARMS (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM
9
8
7
18
6
2
4
14
5
15
12
1
10
3
11
home
17
16
13

Артикул

Название

Примечание

Количество

1

47057405

ELEVATOR FRONT ASSY

1шт.

2

47056072

ELEVATOR FRONT ASSY

RH

1шт.

3

47056069

ARM

LH

1шт.

4

5166585

LOCK PIN,11mm OD

4шт.

5

47056154

PIN

4шт.

6

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

7

87596339

SUPPORT

, Serial Range: -C6321

2шт.

7

87303477

PLATE

, Start Serial: D6321

2шт.

8

11060674

CIRCLIP

4шт.

9

47056164

SPACER,36.5mm ID x 45mm OD x 14.1mm L

4шт.

10

47056163

BEARING, ROLLER, CYL,35mm ID x 55mm OD x 25mm W

2шт.

11

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

12

13407211

LUBE NIPPLE,M10 x 1

2шт.

13

47057180

PIN,35mm OD x 88mm L

2шт.

14

47056165

BRACKET

2шт.

15

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

17

87610849

SUPPORT

, Serial Range: -C6321

1шт.

17

47057176

SUPPORT

, Start Serial: D6321

1шт.

18

47057180

PIN,35mm OD x 88mm L

1шт.

Выбрано товаров: 20
