Запчасти Case IH FARMALL 85C (1.81.9/01[04A]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - PIPES - D6034 (VAR.330404-331404-332404-333404) (07) - HYDRAULIC SYSTEM

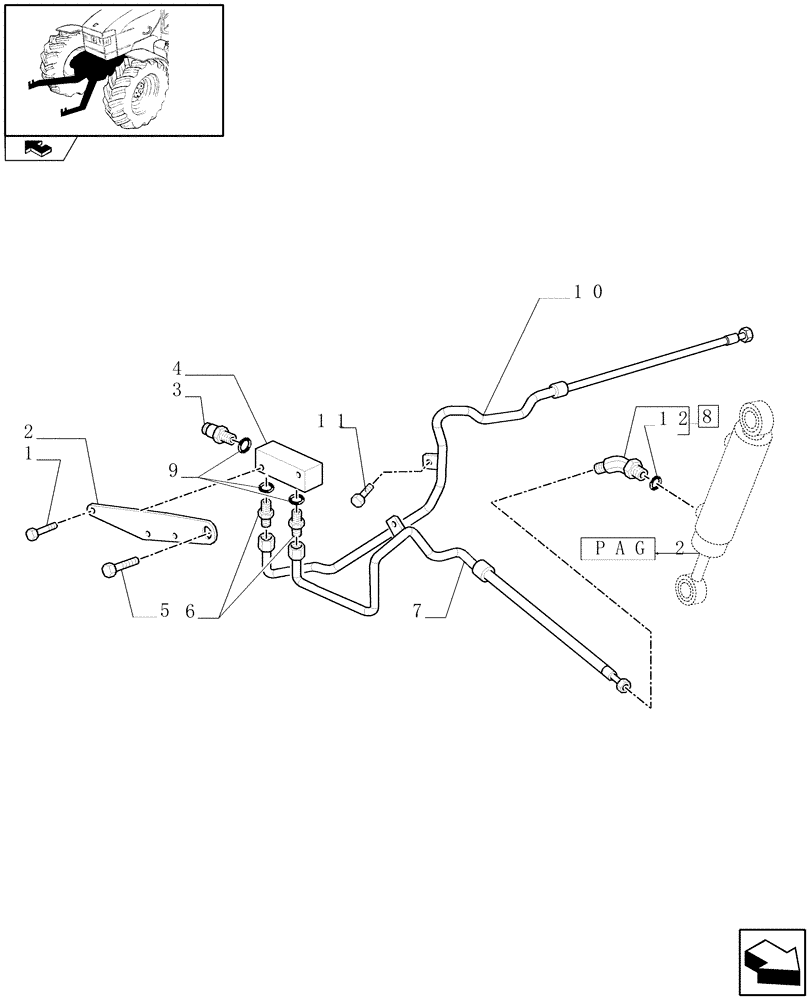

Схема запчастей Case IH FARMALL 85C - (1.81.9/01[04A]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - PIPES - D6034 (VAR.330404-331404-332404-333404) (07) - HYDRAULIC SYSTEM
8
5
3
2
12
6
7
11
10
9
1
4
home
pag.2

Артикул

Название

Примечание

Количество

1

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

2

87745307

BRACKET

1шт.

3

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.

4

47057148

BLOCK

1шт.

5

11121321

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

M20x2.5x35

1шт.

6

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

M22x1.5

2шт.

7

87745314

RIGID TUBE,1048 mm L

RH

1шт.

8

82005507

HYD CONNECTOR

7/8"-14, M18x1.5

2шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

10

87745316

RIGID TUBE,1155 mm L

LH

1шт.

11

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

Выбрано товаров: 12
