(1.81.9/01[03]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - LINK AND PINS (VAR.330404-331404-332404-333404)

Запчасти Case IH FARMALL 85C (1.81.9/01[03]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - LINK AND PINS (VAR.330404-331404-332404-333404) (07) - HYDRAULIC SYSTEM

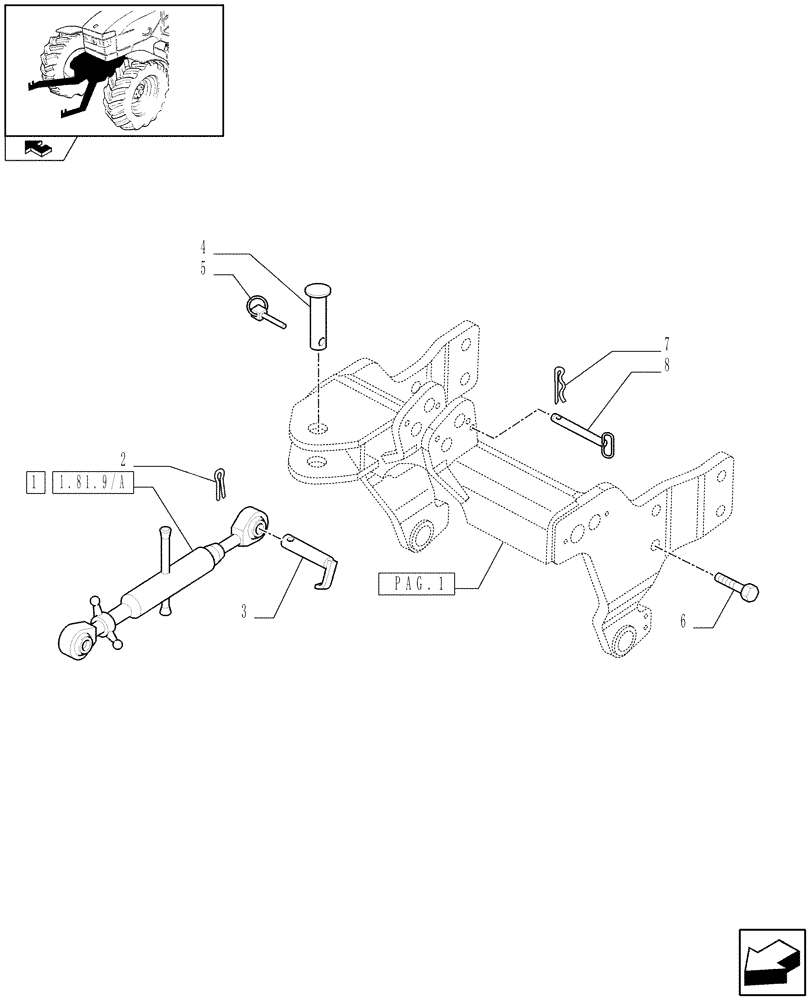

Схема запчастей Case IH FARMALL 85C - (1.81.9/01[03]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - LINK AND PINS (VAR.330404-331404-332404-333404) (07) - HYDRAULIC SYSTEM
7
4
2
1
6
5
3
pag.1
8
1.81.9/a
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87302527

TOP LINK

1шт.

1

47057697

TOP LINK

1шт.

2

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

3

47057435

PIN

1шт.

4

5184366

PIN

1шт.

5

5166585

LOCK PIN,11mm OD

1шт.

6

11124831

BOLT,Hex, M20 x 55, 10.9, Full Thd

8шт.

7

47056731

SPRING CLIP

D=2.5

1шт.

8

47057367

PIN

1шт.

Выбрано товаров: 9
