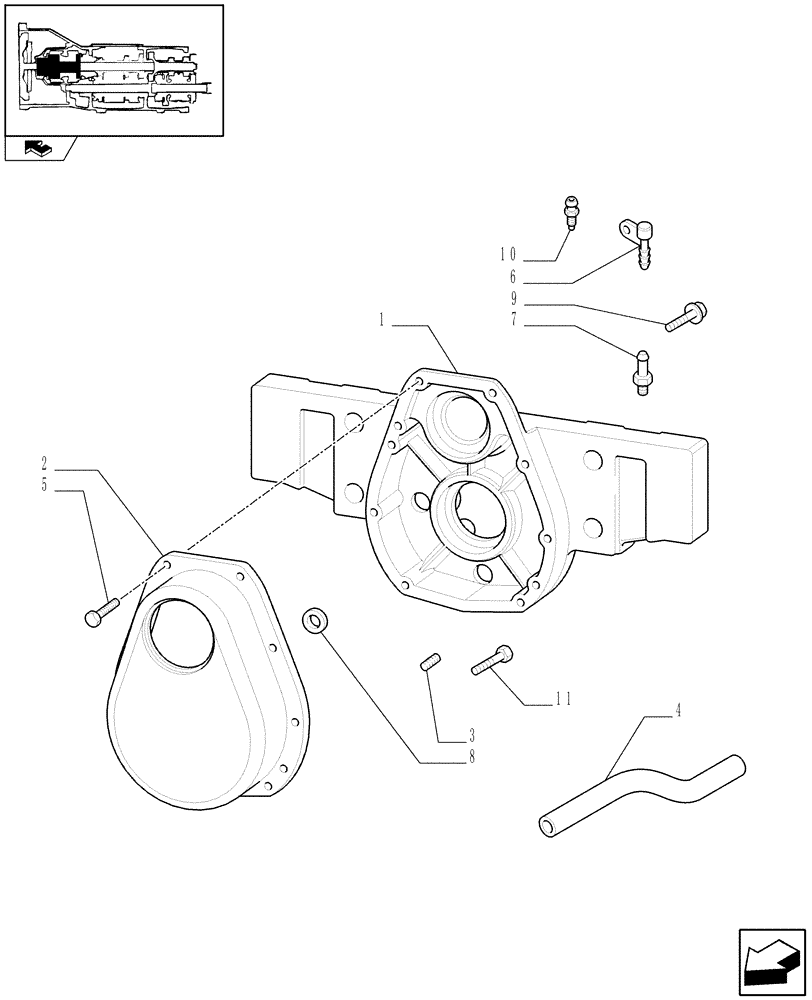

Запчасти Case IH FARMALL 85C (1.80.5/01[01]) - FRONT HPL AND PTO AXLE MOUNTED - POWER TAKE-OFF (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM

1

87603308

BOX

1шт.

2

47132415

TOP COVER

Incl. 3

1шт.

3

593742

DOWEL,8mm OD x 16mm L

8x16

2шт.

4

82849357

HOSE,10mm ID x 5000mm L

1шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

6

5153270

BREATHER

1шт.

7

5157395

FITTING

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

9

10305171

PLUG,M22 x 1.5 x 21

2шт.

10

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

11

16042931

BOLT,Hex, M8 x 1.25 x 10mm, Cl 10.9, Full Thd

1шт.
