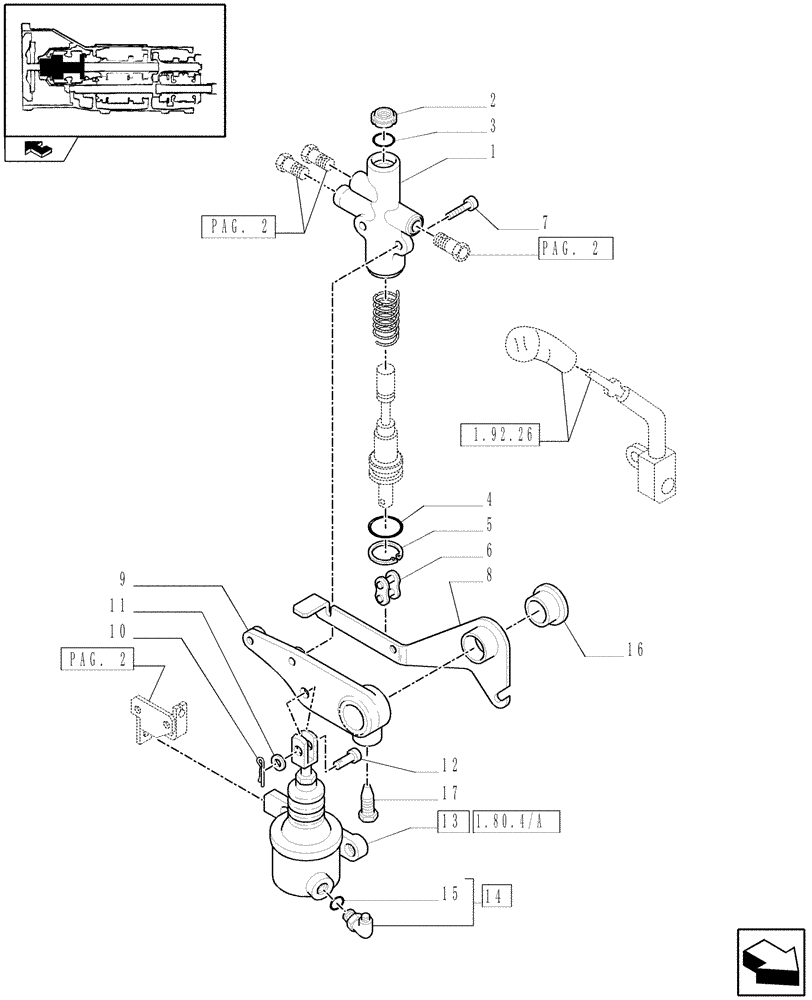

Запчасти Case IH FARMALL 85C (1.80.4/01[01]) - FRONT AXLE W/EL.HYDR.DIFF.LOCK(40KM/H)FOR FRONT HPL-PTO ENGAGEMENT CLUTCH SERVOC. (VAR.332323-332329) (07) - HYDRAULIC SYSTEM

1

5185025

HYDRAULIC VALVE

ASSY, Incl. 2, 3, 4, 5

1шт.

2

5114359

SCRAPER RING,Locking, 12mm ID x 18mm OD x 5mm Thk

1шт.

3

5192732

O-RING,11.91mm ID

1шт.

4

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

5

11057876

SNAP RING,M20, Int

1шт.

6

5185788

LINK,8.7mm Pitch

1шт.

7

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

8

5185806

LEVER

Incl. 16

1шт.

9

5183637

LEVER

1шт.

10

10734201

COTTER PIN,M2 x 12

1шт.

11

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

8x18

1шт.

12

10050811

PIN,8mm OD x 22mm L

1шт.

13

5185842

ACTUATOR

ASSY

1шт.

14

5166932

90 ELBOW,1/2-20 UNF, M12 x 1.5

1шт.

15

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

16

5185794

BUSHING,24.02mm ID x 29mm OD x 17mm L

1шт.

17

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16x1.5x32

1шт.
