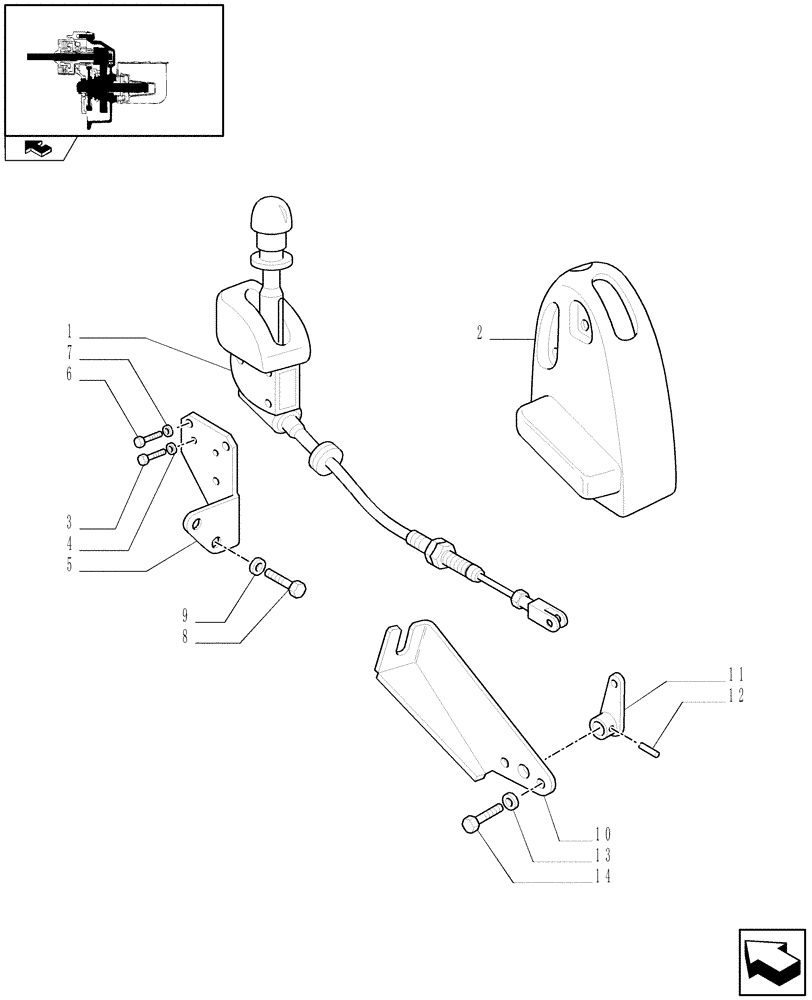

Запчасти Case IH FARMALL 85C (1.80.1/07) - ON BOARD PTO CONTROL LEVER (VAR.330838-331838) (07) - HYDRAULIC SYSTEM

1

47126565

CONTROL LEVER

1шт.

2

47128451

COVER

1шт.

3

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

3шт.

4

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

3шт.

5

47135905

SUPPORT

1шт.

6

14064514

SCREW,Cheese Hd, M6 x 12mm, Cl 5.8

2шт.

7

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

2шт.

8

16043474

BOLT,Hex, M8 x 1.25 x 20mm, Cl 12.9, Full Thd

2шт.

9

12602474

WAVE WASHER,Wave, M8.3

2шт.

10

47128056

SUPPORT

1шт.

11

47126574

LEVER

1шт.

12

14601270

ROLL PIN,M5 x 28, Slotted

1шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

14

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
