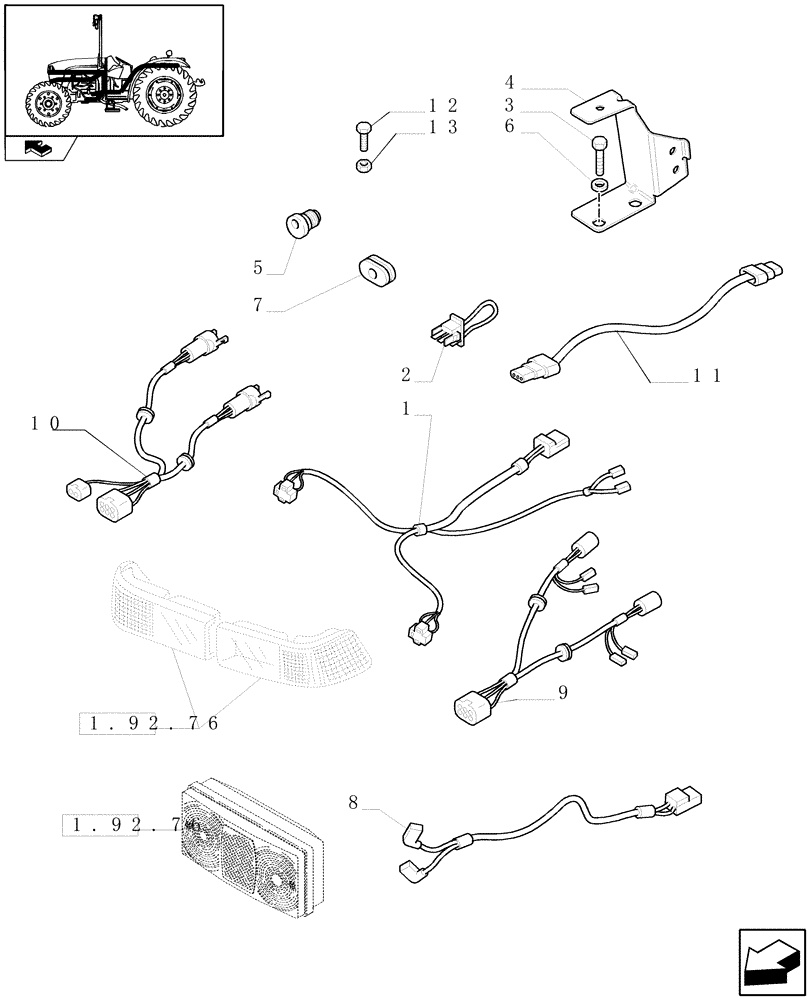

Запчасти Case IH FARMALL 85C (1.75.4[02]) - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

1

87586702

CABLE

1шт.

Hedadlamp Harness ISO

1шт.

2

47124985

BRIDGE

1шт.

3

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

W/CAB

4шт.

3

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

4

87677238

BRACKET

1шт.

5

47124938

INSULATING RING

W/CAB

2шт.

6

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

7

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

4шт.

8

47126628

ELECTRIC CABLE

W/CAB

2шт.

RH/LH Rear Lamps, Extension, ISO

1шт.

9

5191654

ELECTRIC CABLE

L/CAB

2шт.

RH/LH Rear Lamps, Extension, ISO

1шт.

10

5198442

ELECTRIC CABLE

1шт.

RH/LH Rear Lamps, Extension, NA

1шт.

11

84131515

ELECTRIC CABLE

VAR.338846

1шт.

12

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

2шт.

13

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.
