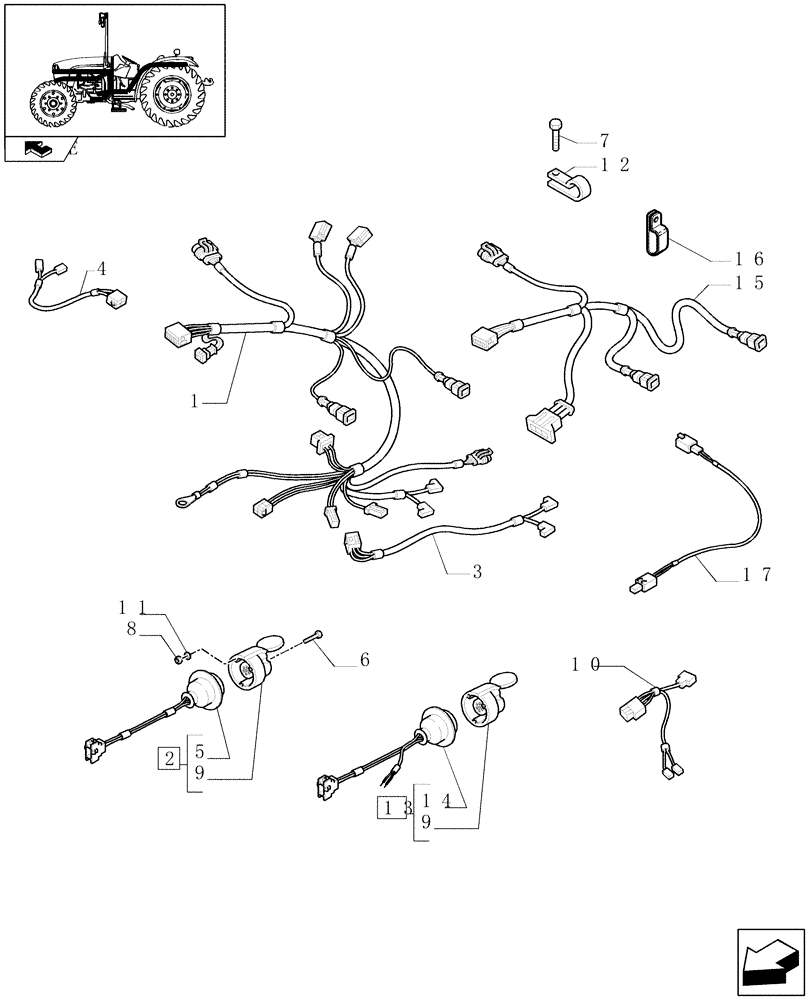

Запчасти Case IH FARMALL 85C (1.75.4[01]) - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

1

87368063

CABLE

Trasmission Harness

1шт.

1

87368097

CABLE

W/CAB

1шт.

Transmission Harness With EDC

1шт.

Base Equipment for 95C Model; VAR331307-334307, 4WD Electrohydraulic Engement for EDC for 85C Model.

1шт.

2

5196941

ELECTRIC CABLE

Trailer Socket

1шт.

3

5189718

WIRE HARNESS

Extension for Switch

1шт.

4

5191651

ELECTRIC CABLE

4WD Mech. Warning Light Extension, 85C

1шт.

5

5188076

ELECTRIC CABLE

1шт.

6

13272924

SCREW,M4 x 35mm

M4x35

3шт.

7

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

4шт.

8

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

3шт.

9

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

12V, 7 Pole

1шт.

10

5191652

ELECTRIC CABLE

4WD Hydr. Warning Light Extension, Serial Range: -C6387

1шт.

Base Equipment for 85C Model, VAR.330307-333307, 4WD Electrohydraulic Engagement for 95C Model.

1шт.

11

15896414

NUT,M5, Cl 8

3шт.

12

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

10 mm dia.

4шт.

13

47132893

ELECTRIC CABLE

1шт.

Licence Plate Side Fender Mounted For LH Drive Markets & 7-Pin ISO Trailer Connector, VAR.330958

1шт.

13

47132892

ELECTRIC CABLE

1шт.

Licence Plate Side Fender Mounted For RH Drive Markets & 7-Pin ISO Trailer Connector, VAR.332958-334958

1шт.

SMV Emblem with Support & 7-Pin ISO Trailer Connector for Finalnd/Sweden, VAR.331960

1шт.

14

47132895

ELECTRIC CABLE

1шт.

Licence Plate Side Fender Mounted For LH Drive Markets & 7-Pin ISO Trailer Connector, VAR.330958

1шт.

14

47132894

ELECTRIC CABLE

1шт.

Licence Plate Side Fender Mounted For RH Drive Markets & 7-Pin ISO Trailer Connector, VAR.332958-334958

1шт.

SMV Emblem with Support & 7-Pin ISO Trailer Connector for Finalnd/Sweden, VAR.331960

1шт.

15

87665869

CABLE

1шт.

Base Equipment for 95C Model; VAR.337280, Gearbox Top Speed Selection (40KM/H) for 85C Model.

1шт.

16

5156426

COLLAR

3шт.

17

84185621

CABLE

4WD Hydr. Warning Light Extension, Start Serial: D6387

1шт.

Electro-hydraulic 4WD, VAR.330307-333307-334307

1шт.
