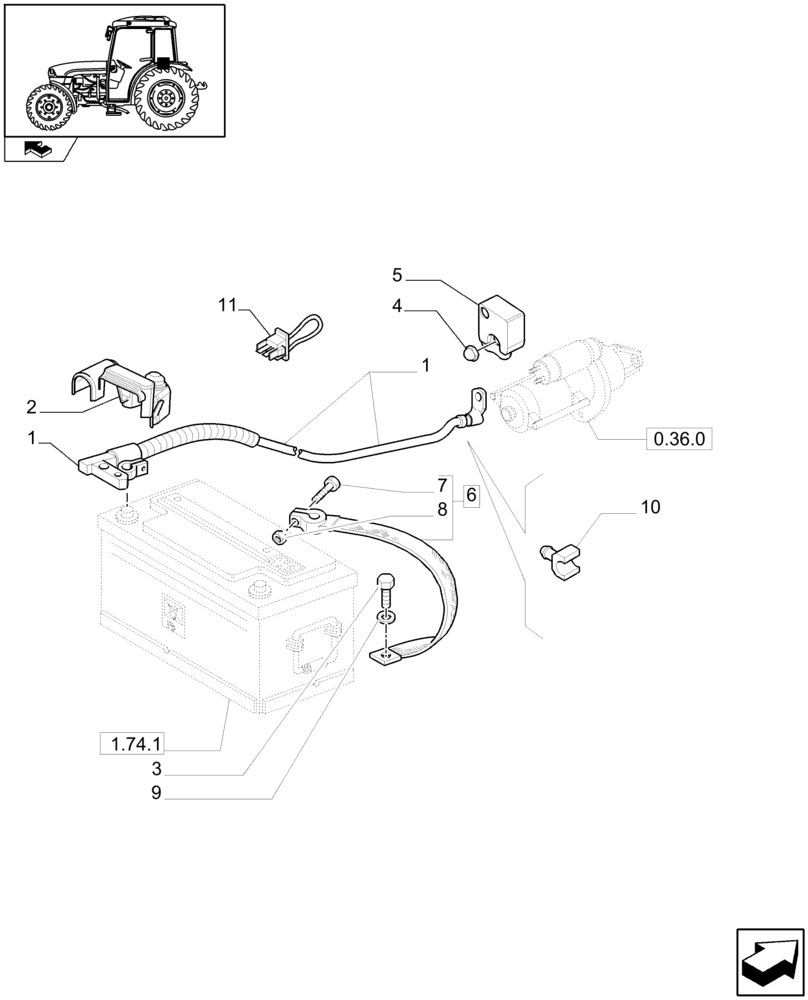

Запчасти Case IH FARMALL 85C (1.75.3/01) - BATTERY CABLES LESS BATTERY ISOLAR SWITCH (VAR.338798) (06) - ELECTRICAL SYSTEMS

1

87389933

CABLE

ASSY

1шт.

2

87526978

PROTECTION CAP

1шт.

3

13626521

SCREW,M10 x 1.25 x 25mm

M10x1.25x25

1шт.

4

5171012

NUT,M10

1шт.

5

87309612

COVER

1шт.

6

87309778

ELECTRIC CABLE

ASSY

1шт.

7

11945208

SCREW

M6 x 35

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

10

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

gen-14

2шт.

11

47133777

BRIDGE

1шт.
