Запчасти Case IH FARMALL 85C (1.75.3[01]) - BATTERY CABLES - C6502 (06) - ELECTRICAL SYSTEMS

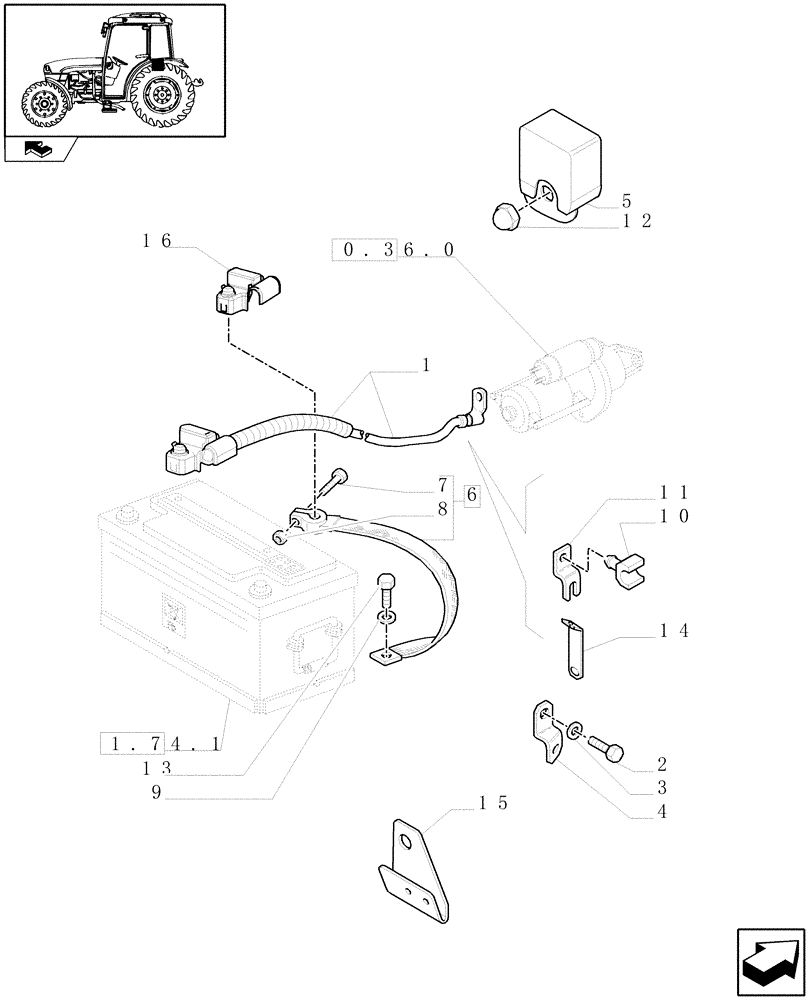

Схема запчастей Case IH FARMALL 85C - (1.75.3[01]) - BATTERY CABLES - C6502 (06) - ELECTRICAL SYSTEMS
12
14
9
15
6
2
home
7
13
5
4
3
11
1
16
10
0.36.0
1.74.1
8

Артикул

Название

Примечание

Количество

1

87389933

CABLE

ASSY

1шт.

1

87699329

ELECTRIC CABLE

1шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

Front HPL and PTO Chassis Mounted, VAR.330404-331404-332404-333404-330789

1шт.

2

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

4

5179441

BRACKET

1шт.

5

87309612

COVER

1шт.

6

87309778

ELECTRIC CABLE

ASSY

1шт.

6

5111023

GROUND CABLE

1шт.

Front HPL and PTO Chassis Mounted, VAR.330404-331404-332404-333404-330789

1шт.

7

11945208

SCREW

M6 x 35

1шт.

7

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

Sq. Hd, M6 x 1 x 30

1шт.

Front HPL and PTO Chassis Mounted, VAR.330404-331404-332404-333404-330789

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

8

15896218

NUT,Hex, M6 x 1

1шт.

Front HPL and PTO Chassis Mounted, VAR.330404-331404-332404-333404-330789

1шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

10

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

1-14

3шт.

11

5120229

PLATE

1шт.

12

87307333

NUT

1шт.

13

13626521

SCREW,M10 x 1.25 x 25mm

M10x1.25x25

1шт.

14

47133011

BRACKET

1шт.

15

87736503

BRACKET

1шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

Front HPL and PTO Chassis Mounted, VAR.330404-331404-332404-333404-330789

1шт.

16

87526978

PROTECTION CAP

1шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

Выбрано товаров: 28
