Запчасти Case IH FARMALL 85C (1.75.0) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

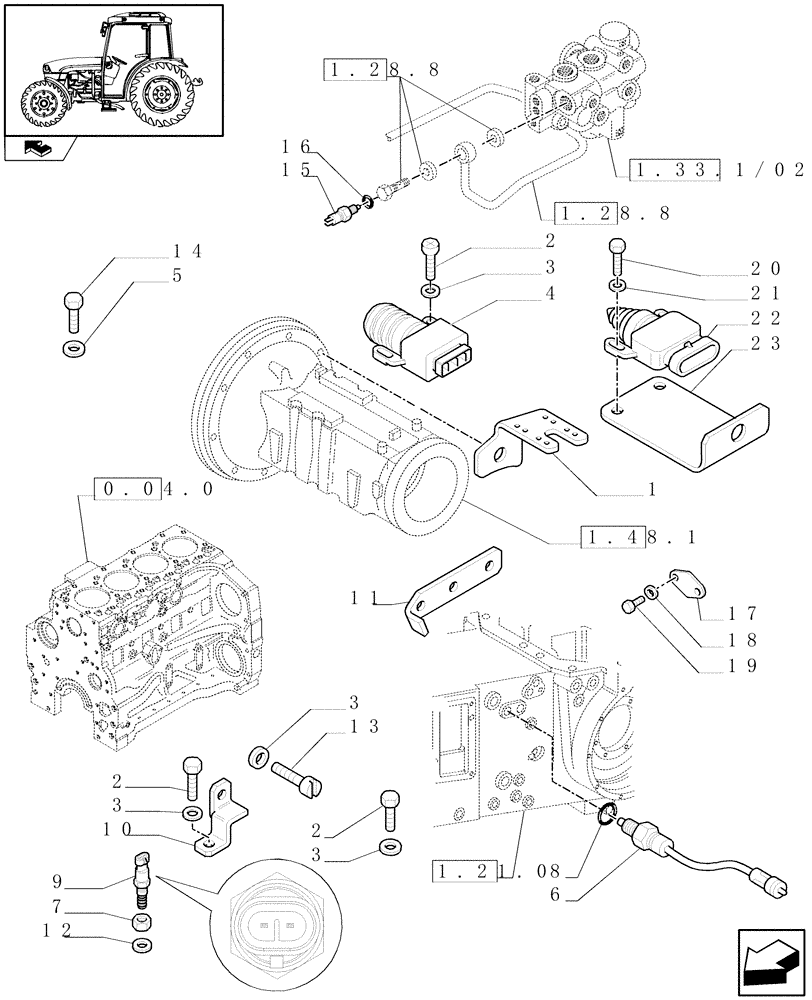

Схема запчастей Case IH FARMALL 85C - (1.75.0) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS
20
21
17
12
15
23
14
16
1.28.8
4
1.21.0
2
1
7
22
19
2
18
3
11
6
3
9
8
5
1.28.8
13
2
3
3
10
1.33.1/02
0.04.0
1.48.1
home

Артикул

Название

Примечание

Количество

1

87317061

BRACKET

1шт.

2

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

, Serial Range: -C6390

1шт.

3

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

, Serial Range: -C6390

1шт.

4

47137022

SWITCH

, Serial Range: -C6390

1шт.

Snap Action Switch

1шт.

Diff. Lock Detector

1шт.

5

11181674

BELLEVILLE WASHER,M5 Bolt Size x 15mm OD x 1mm Thk

2шт.

6

87598056

SWITCH

Yellow

1шт.

Reverse Control Neutral Position Detector

1шт.

7

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

85C

1шт.

8

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

M14

2шт.

9

5193121

PUSH BUTTON SWITCH

85C

1шт.

Push Starting Switch

1шт.

4WD mechanical engagement

1шт.

10

5187502

BRACKET

85C

1шт.

11

5187503

BRACKET

85C

1шт.

12

12544771

LOCK WASHER

85C

1шт.

13

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

1шт.

14

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

15

87395493

PRESSURE SWITCH

Transm. Oil

1шт.

16

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

17

5191269

COVER PLATE

1шт.

18

10571574

LOCK WASHER

2шт.

19

13276111

SCREW,Pozidriv Pan Hd, M6 x 14mm, Cl 5.8

M6 x 14

2шт.

20

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

, Start Serial: D6390

2шт.

21

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

, Start Serial: D6390

2шт.

22

87484878

LIMIT SWITCH

, Start Serial: D6390

1шт.

Snap Action Switch

1шт.

Diff. Lock Detector

1шт.

23

87481920

BRACKET

, Start Serial: D6390

1шт.

Выбрано товаров: 30
