Запчасти Case IH FARMALL 85C (1.44.0/02) - FRONT WEIGHT & SUPPORT WITH 5 PLATES AND CENTRAL PLATE (VAR.330242) (04) - FRONT AXLE & STEERING

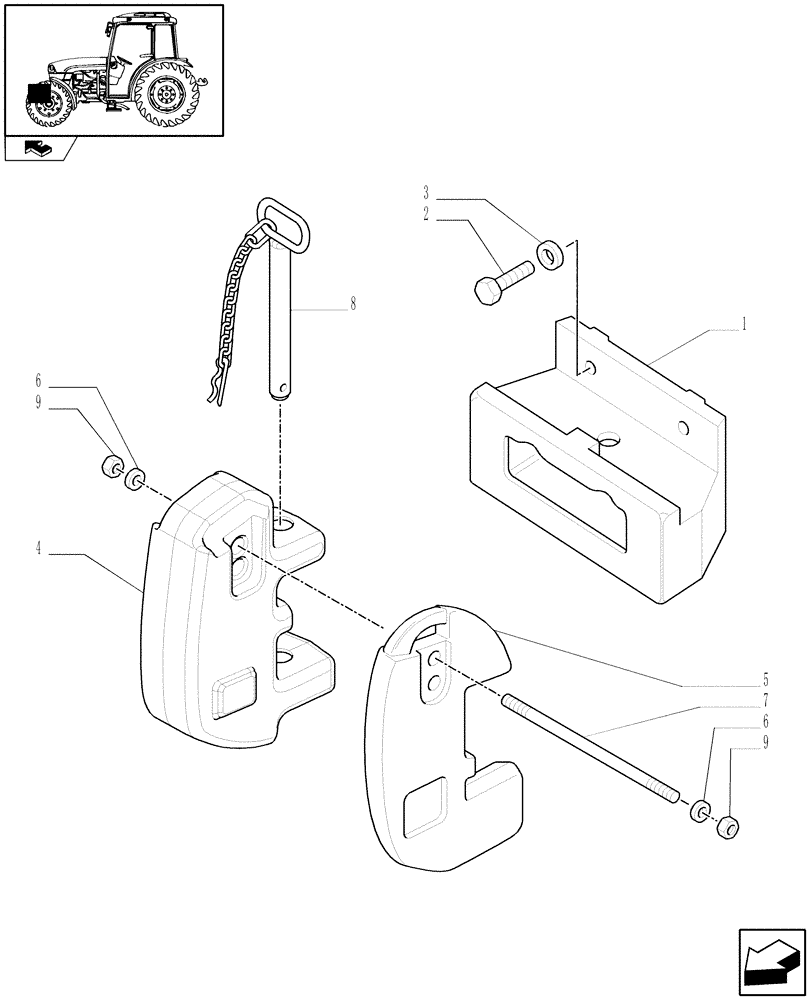

Схема запчастей Case IH FARMALL 85C - (1.44.0/02) - FRONT WEIGHT & SUPPORT WITH 5 PLATES AND CENTRAL PLATE (VAR.330242) (04) - FRONT AXLE & STEERING
6
4
1
home
7
3
6
5
9
9
8
2

Артикул

Название

Примечание

Количество

1

47123848

SUPPORT

1шт.

2

11125131

BOLT,Hex, M20 x 70, 10.9

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20x38x4.6

4шт.

4

87325091

WEIGHT

75Kg

1шт.

5

47056220

WEIGHT,40Kg/88Lb

40Kg

4шт.

6

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

17x55x8

2шт.

7

82028306

THREADED ROD,M16 x 2 x 385mm L

1шт.

8

47132417

PIN,3.6mm OD x 64mm L

1шт.

9

12163321

NUT,M16, Cl 10

2шт.

Выбрано товаров: 9
