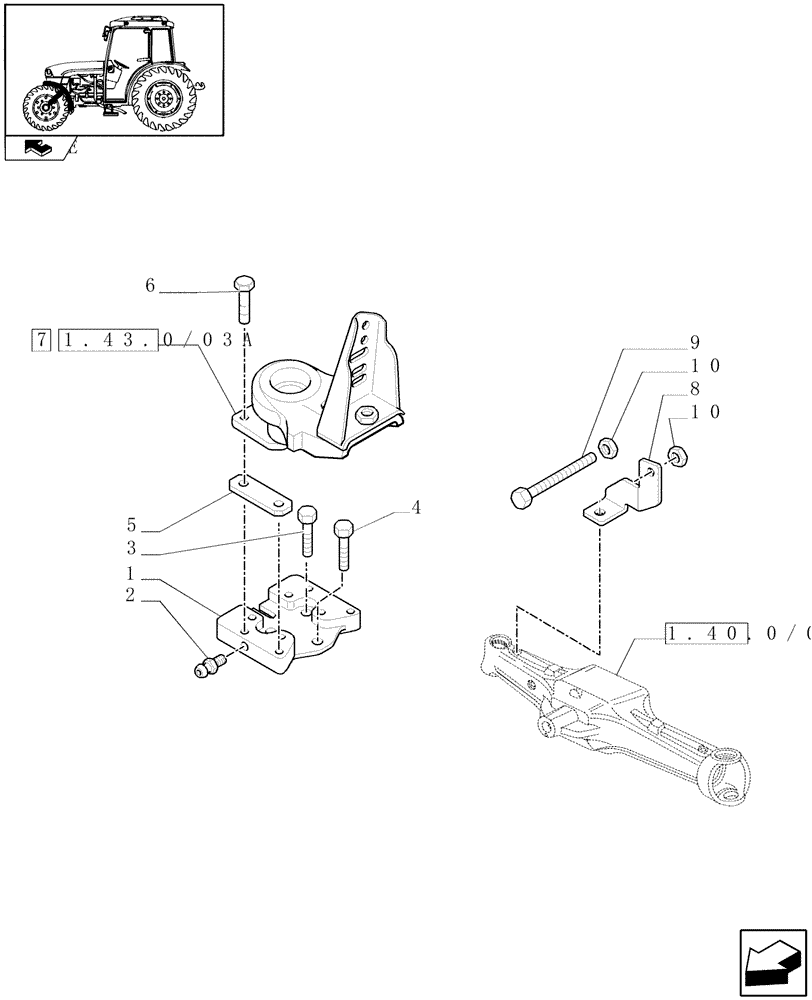

Запчасти Case IH FARMALL 85C (1.43.0/03[02]) - NARROW DYNAMIC FRONT FENDERS (4WD) - SUPPORTS (VAR.338486) (04) - FRONT AXLE & STEERING

1

47132605

BRACKET

RH

1шт.

1

47132603

BRACKET

LH

1шт.

2

13407211

LUBE NIPPLE,M10 x 1

2шт.

3

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

4

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

5

87484584

SPACER

4шт.

6

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

7

87644517

SUPPORT

LH, ASSY

1шт.

7

87644544

SUPPORT

RH, ASSY

1шт.

8

87644421

BRACKET

RH

1шт.

8

87644463

BRACKET

LH

1шт.

9

15235221

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

2шт.

10

16101521

NUT,M12 x 1.25, Cl 10

4шт.
