Запчасти Case IH FARMALL 85C (1.42.0/01) - MEGA FLOW PUMP (62 L/MIN) AND OIL COOLER - OIL PUMP (VAR.330823-332823) (04) - FRONT AXLE & STEERING

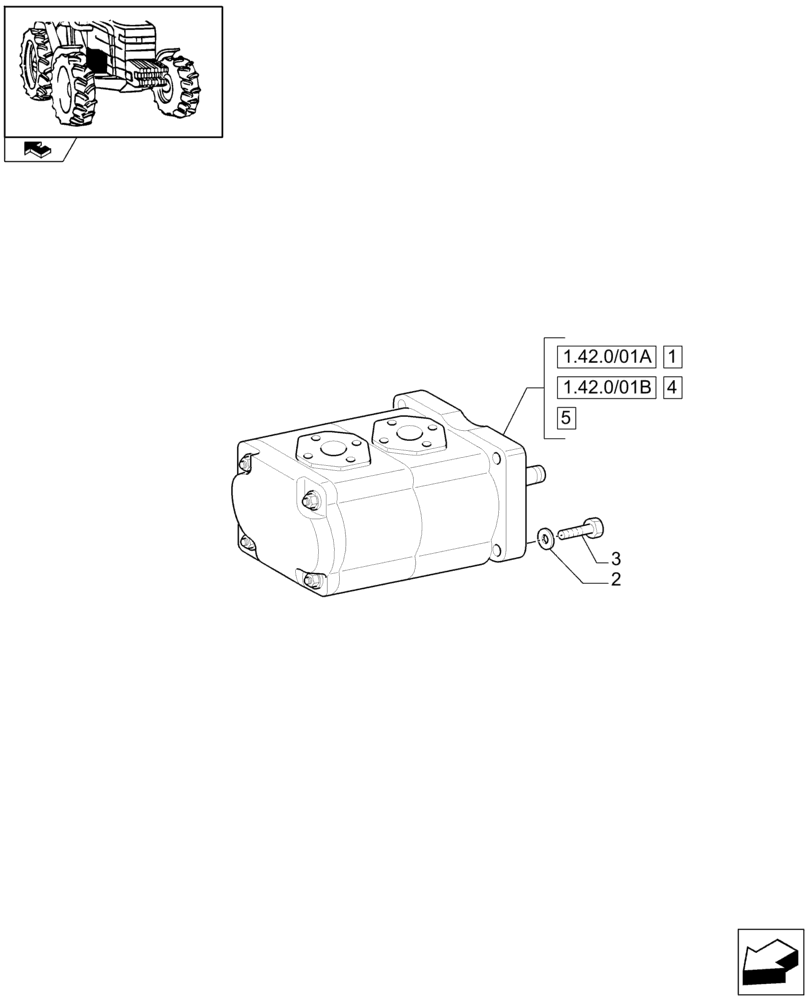

Схема запчастей Case IH FARMALL 85C - (1.42.0/01) - MEGA FLOW PUMP (62 L/MIN) AND OIL COOLER - OIL PUMP (VAR.330823-332823) (04) - FRONT AXLE & STEERING
1.42.0/01a
4
1
home
3
1.42.0/01b
5
2

Артикул

Название

Примечание

Количество

1

87386049

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Serial Range: -C5996

1шт.

1

87472285R

REMAN-HYD PUMP

, Serial Range: -C5996

1шт.

1

87472285C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

87472285

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Serial Range: D5996-C7248

1шт.

4

87472285R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

4

87472285C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

4

8761808C

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

5

84580579

HYDRAULIC PUMP,21.95 CC

, Start Serial: D7248

1шт.

Выбрано товаров: 10
