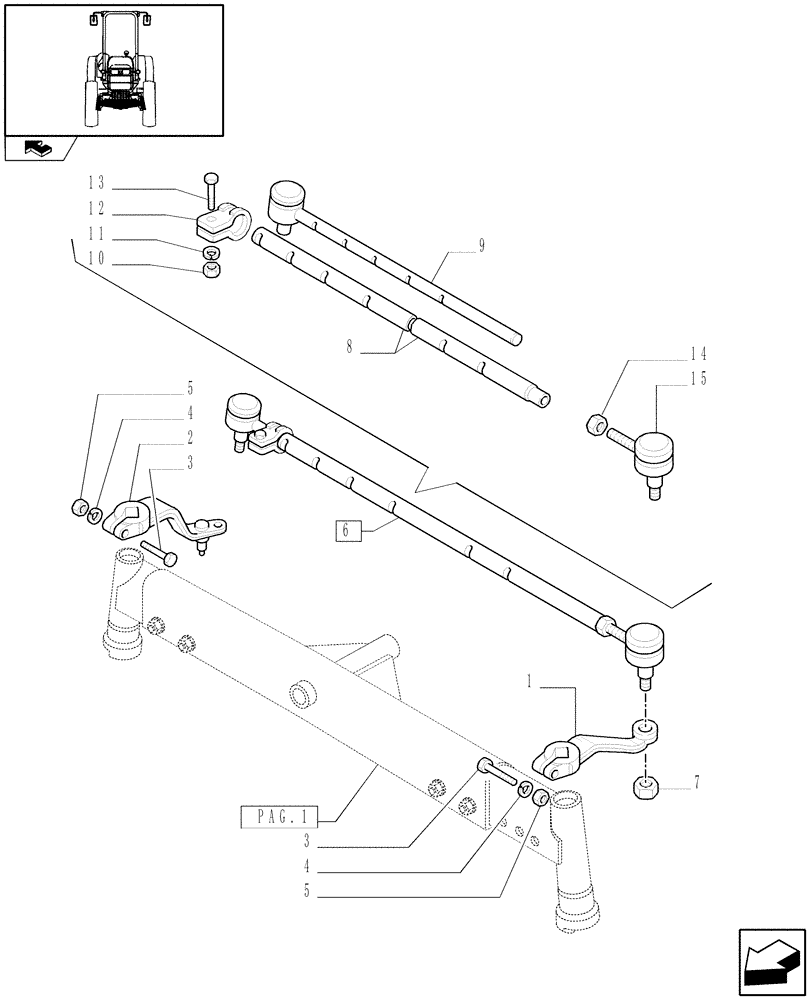

Запчасти Case IH FARMALL 85C (1.41.0/01[03]) - 2WD FRONT AXLE WITH LOW PROFILE - ROD (VAR.330582) (04) - FRONT AXLE & STEERING

1

5166080

STEERING ARM

LH

1шт.

2

87621271

LEVER

1шт.

3

15862131

BOLT,Hex, M14 x 1.5 x 80mm, Cl 10.9

2шт.

4

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

5

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

6

5166075

TRACK ROD ASSY

1шт.

7

12575921

NUT,M16 x 1.5, Cl 05

2шт.

8

5166076

RIGID TUBE

945MM

1шт.

9

5166077

TRACK ROD ASSY

1шт.

10

12164714

NUT,M10 x 1.25, Cl 8

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

12

4997704

CLAMP

1шт.

13

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

1шт.

14

587302

LOCK NUT,Hex, M20 x 1

M20

1шт.

15

5109553

BALL JOINT

M16xM20 Threads

1шт.
