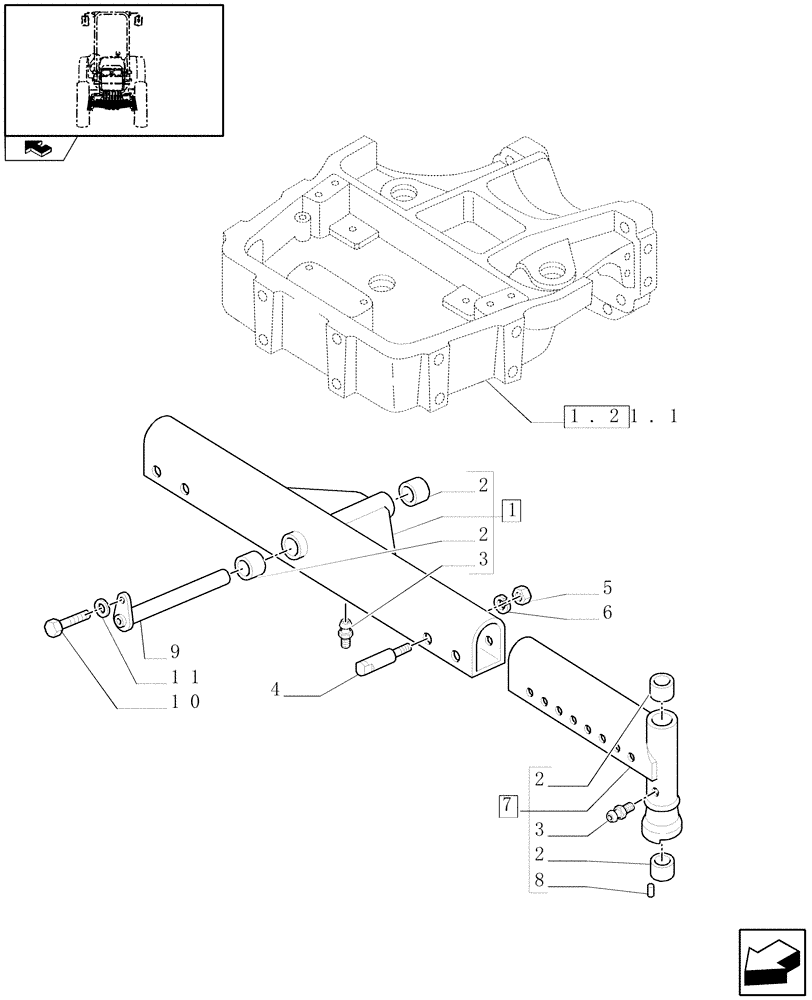

Запчасти Case IH FARMALL 85C (1.41.0/01[01]) - 2WD FRONT AXLE WITH LOW PROFILE - BOX (VAR.330582) (04) - FRONT AXLE & STEERING

1

87619663

SUPPORT

ASSY

1шт.

2

5115656

BUSHING,38.05mm ID x 42mm OD x 40mm L

6шт.

3

13407211

LUBE NIPPLE,M10 x 1

3шт.

4

5168833

LOCK PIN,30mm OD x 110mm L

4шт.

5

16980931

NUT

20x1.5

4шт.

6

11191779

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20x30x4.6

4шт.

7

5166105

TRACK ROD END ASSY

2шт.

8

10839510

DOWEL,M6 x 9

2шт.

9

5110400

PIVOT PIN,400mm L

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.
