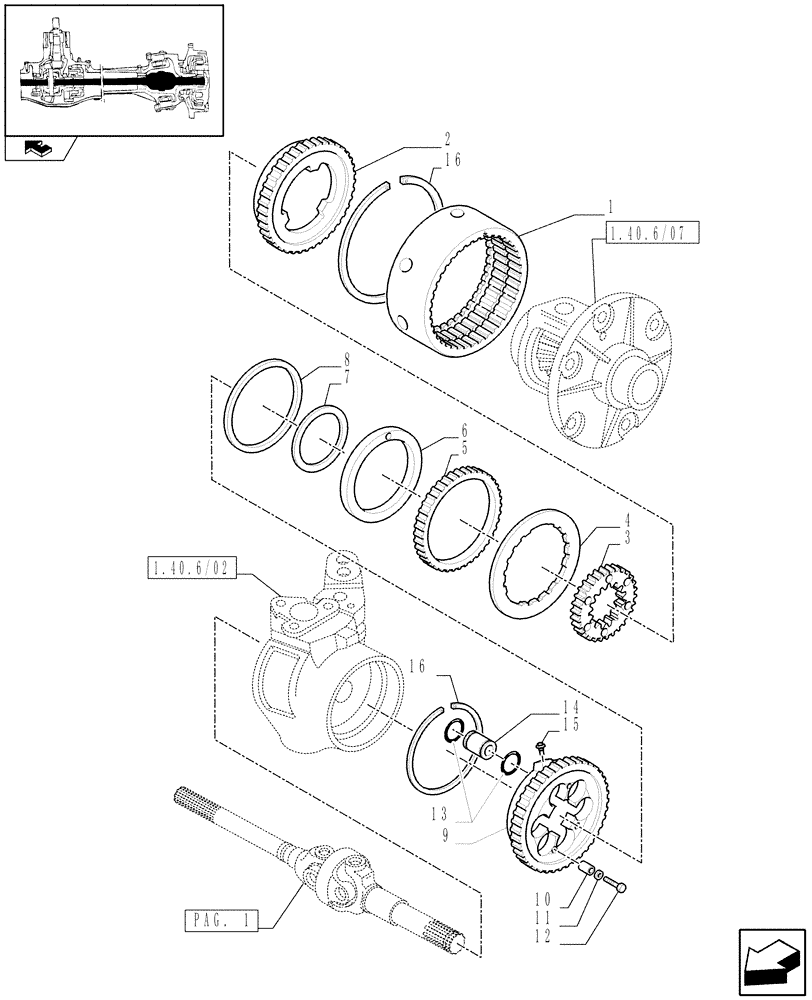

Запчасти Case IH FARMALL 85C (1.40.6/10[02]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - COVER PLATE (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

1

5178603

RING GEAR,171.5mm ID x 199.5mm OD x 84.5mm Thk, 23/60T

2шт.

2

5178605

DISC,170mm ID x 181mm OD x 13.5 mm Tnk

2шт.

3

5178606

HUB

2шт.

4

5178600

BRAKE DISC,80mm ID x 168mm OD x 3.5mm Thk

2шт.

5

5178588

DISC,119mm ID x 181mm OD x 4.95mm Thk, 60T

2шт.

6

5173498

BUSHING,119.23mm ID x 153.77mm OD x 15.5mm L

2шт.

7

5178747

SEAL,Square, 3.4mm Thk x 112.6mm ID, 80 Duro

2шт.

8

5178746

SEAL,Square, 3.4mm Thk x 153.6mm ID, 80 Duro

2шт.

9

5173500

HOUSING

2шт.

10

5179292

BUSHING,10.5mm ID x 15.9mm OD x 22.8mm L

12шт.

11

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

12шт.

12

16323831

SCREW,Hex, M10 x 1.25 x 45mm

M10x1.25x45

12шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

4шт.

14

5173504

PAWL,16mm OD x 25mm L

2шт.

15

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

16

5173730

SNAP RING,M168 x 2.5mm Thk, Int

D=175

4шт.
