(1.40.6/10[01]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HALF AXLE (VAR.331329-332329-335329)

Запчасти Case IH FARMALL 85C (1.40.6/10[01]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HALF AXLE (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

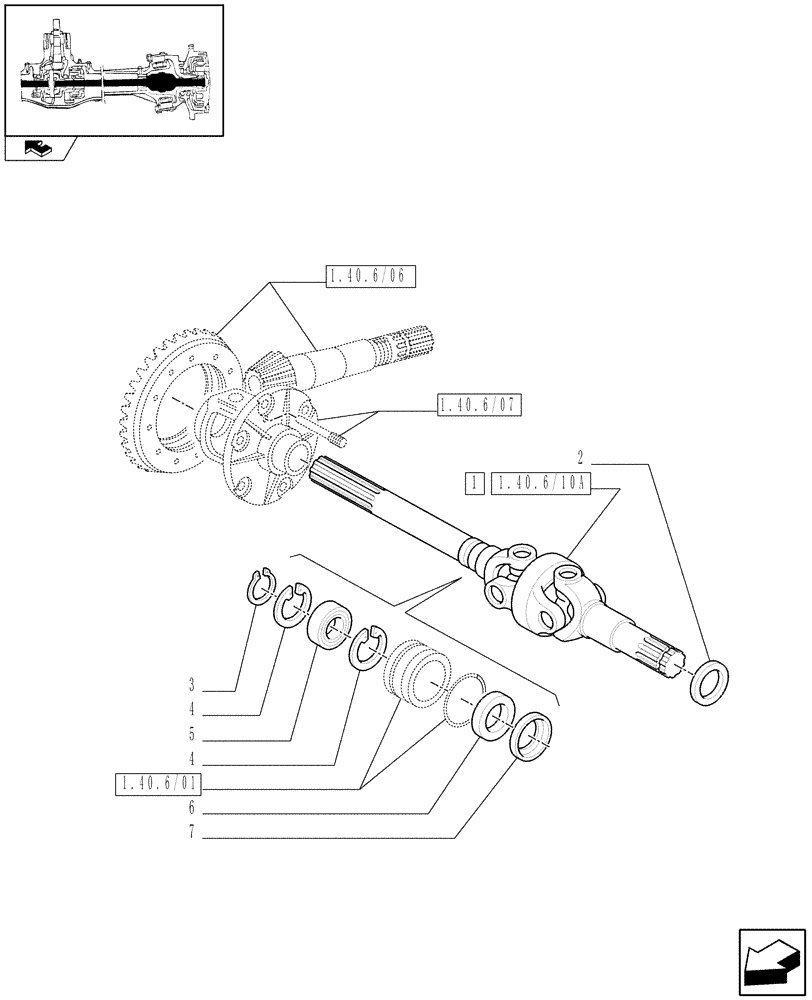

Схема запчастей Case IH FARMALL 85C - (1.40.6/10[01]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HALF AXLE (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
5
1.40.6/10a
6
4
3
7
1.40.6/07
home
1.40.6/01
1.40.6/06
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186659

AXLE-SHAFT, ARTICULA

ASSY, LH

1шт.

1

5186660

ARTICULATED SHAFT

ASSY, RH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

65x47x16.5

2шт.

3

370003

SNAP RING,M30, External

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

Выбрано товаров: 8
