Запчасти Case IH FARMALL 85C (1.40.6/08[02]) - FRONT AXLE WI/ELECTROH.DIFF.LOCK WITH FRONT BRAKE(40KM/H)-HYDR.DIF.LOCK CONT. (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

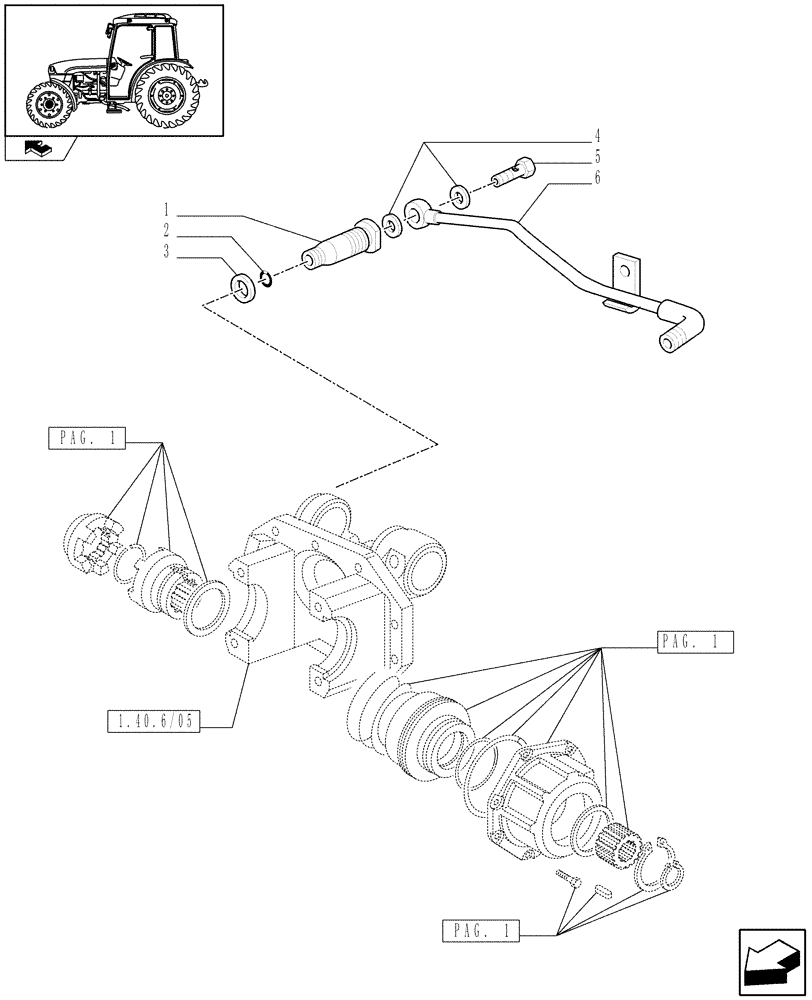

Схема запчастей Case IH FARMALL 85C - (1.40.6/08[02]) - FRONT AXLE WI/ELECTROH.DIFF.LOCK WITH FRONT BRAKE(40KM/H)-HYDR.DIF.LOCK CONT. (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
5
1.40.6/05
home
pag. 1
pag. 1
pag. 1
2
6
4
1
3

Артикул

Название

Примечание

Количество

1

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

1шт.

2

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

2

81844608

O-RING,11.10mm ID x 1.78mm

437"

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

23.5x30x1.5

1шт.

4

2852356

SEALING WASHER

14x20x1.5

2шт.

4

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14x1.5

1шт.

6

47124182

RIGID TUBE

1шт.

Выбрано товаров: 8
