(1.40.6/03) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HUB (VAR.331329-332329-335329)

Запчасти Case IH FARMALL 85C (1.40.6/03) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HUB (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

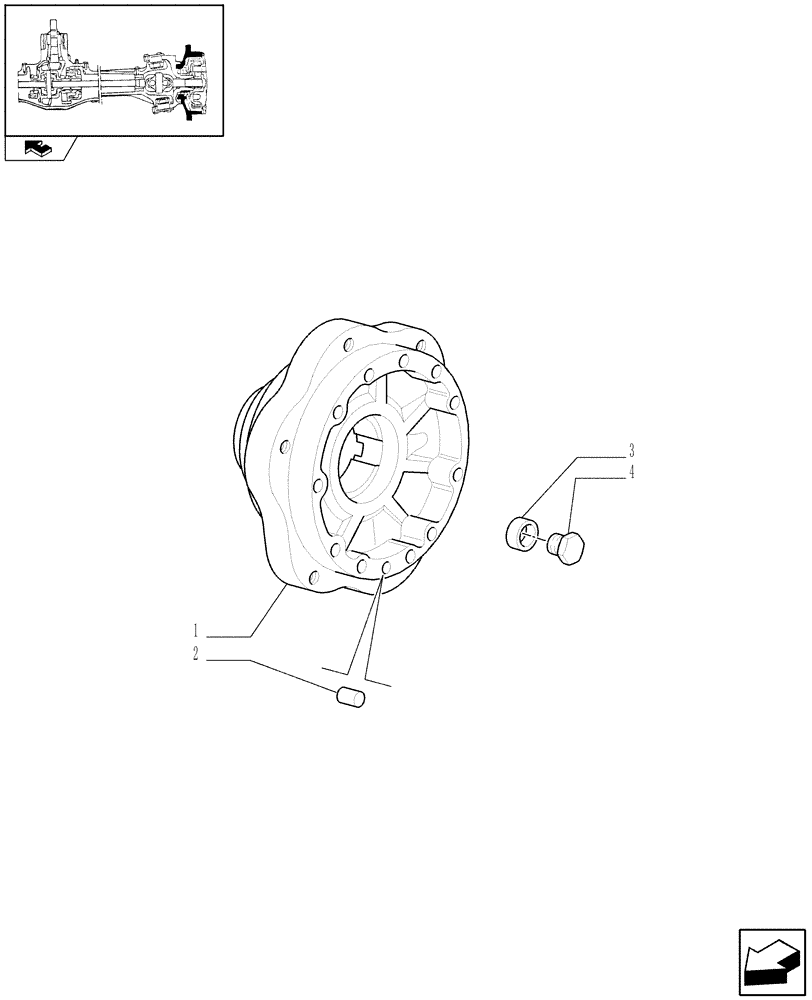

Схема запчастей Case IH FARMALL 85C - (1.40.6/03) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HUB (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
3
home
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87601194

HUB

2шт.

2

4988170

PIN,10mm OD x 20mm L

M10x20

4шт.

3

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

4

10278340

PLUG,M28 x 1.5 x 11, Brass

2шт.

Выбрано товаров: 4
