(1.40.0/10[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT

Запчасти Case IH FARMALL 85C (1.40.0/10[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT (04) - FRONT AXLE & STEERING

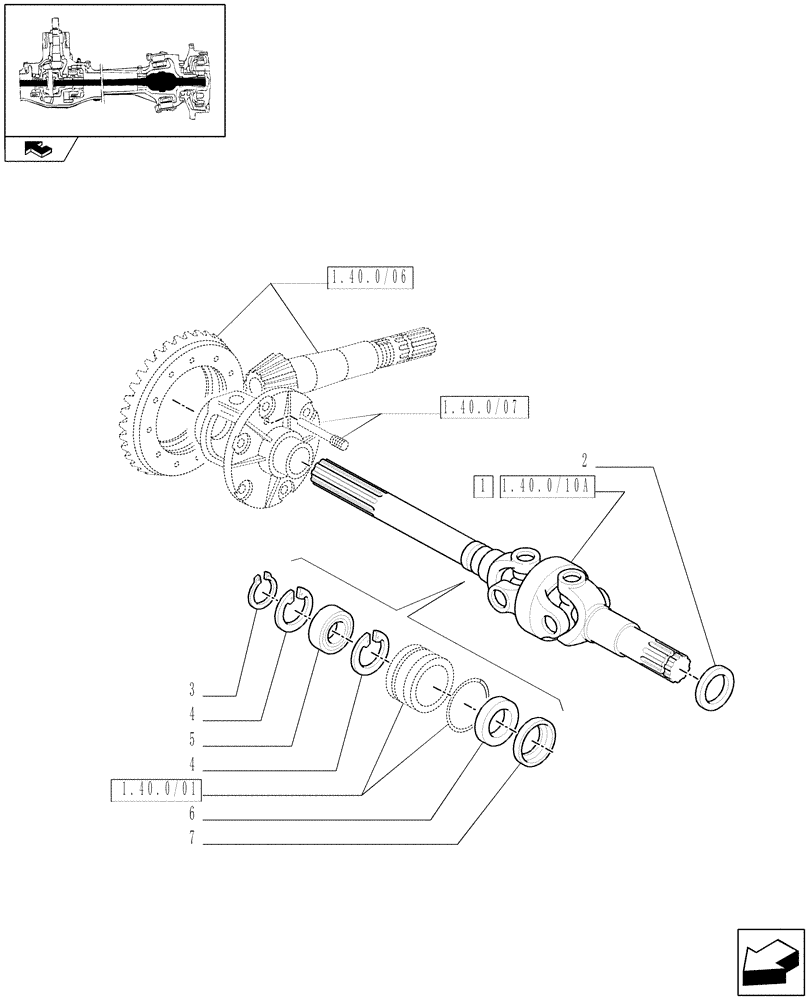

Схема запчастей Case IH FARMALL 85C - (1.40.0/10[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT (04) - FRONT AXLE & STEERING
1
4
1.40.0/10a
home
1.40.0/07
1.40.0/01
1.40.0/06
2
7
4
3
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186653

AXLE-SHAFT, ARTICULA

LH

1шт.

1

5186652

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

47x65x16.5

2шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

Выбрано товаров: 8
