Запчасти Case IH FARMALL 85C (1.38.5/01[01]) - 4WD WATERPROOF TRANSMISSION - TRANSMISSION SHAFTS (VAR.332448-333448) (04) - FRONT AXLE & STEERING

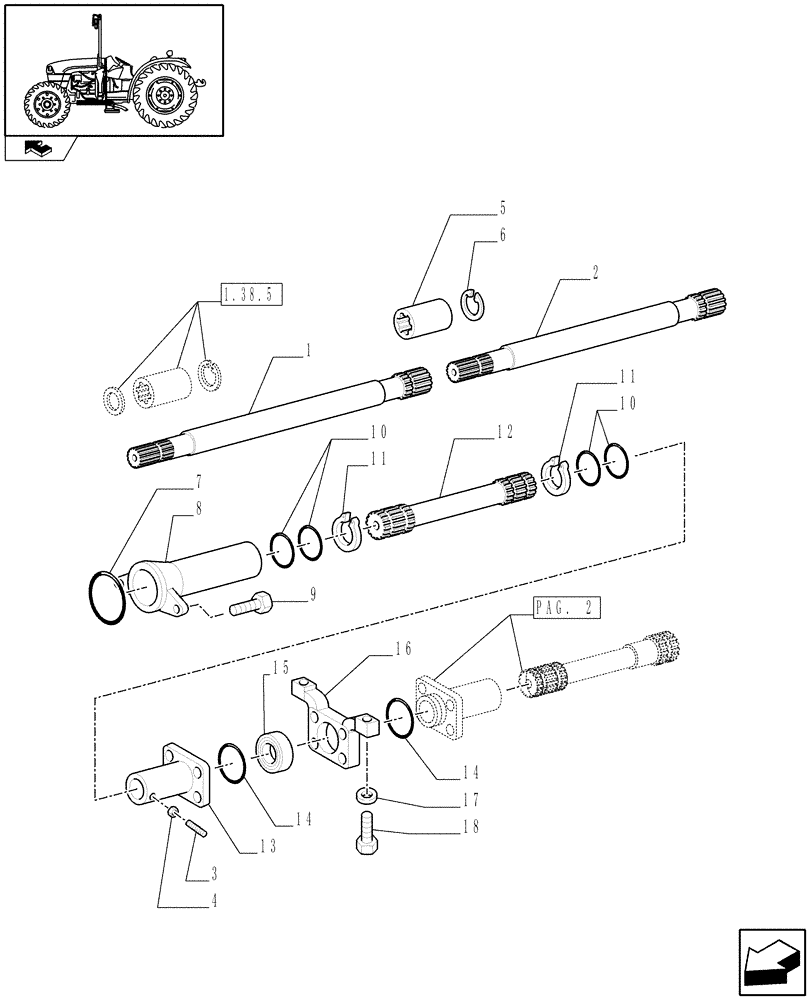

Схема запчастей Case IH FARMALL 85C - (1.38.5/01[01]) - 4WD WATERPROOF TRANSMISSION - TRANSMISSION SHAFTS (VAR.332448-333448) (04) - FRONT AXLE & STEERING
5
11
17
16
15
2
7
8
18
12
1
6
11
14
10
9
1.38.5
home
4
13
3
pag. 2
14
10

Артикул

Название

Примечание

Количество

1

47137168

PROPELLER SHAFT

1шт.

2

47137169

PROPELLER SHAFT

Rear

1шт.

3

13809631

SET SCREW,Hex Soc, M10 x 20mm, Flat Pt

2шт.

4

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

5

4997312

SLEEVE,10T

Center

1шт.

6

11067776

SNAP RING,M29, Ext

2шт.

7

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

8

47124556

SLEEVE,57mm ID x 66mm OD x 104.0mm L

Front

1шт.

9

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

5шт.

11

11069676

SNAP RING,M56, Ext

2шт.

12

47137407

SHIELD

Front

1шт.

13

87310696

FLANGE

Front

1шт.

14

86012299

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

15

9802733

BALL BEARING,40mm ID x 68mm OD x 15mm W

1шт.

16

5181901

SUPPORT

1шт.

17

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

18

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

Выбрано товаров: 18
