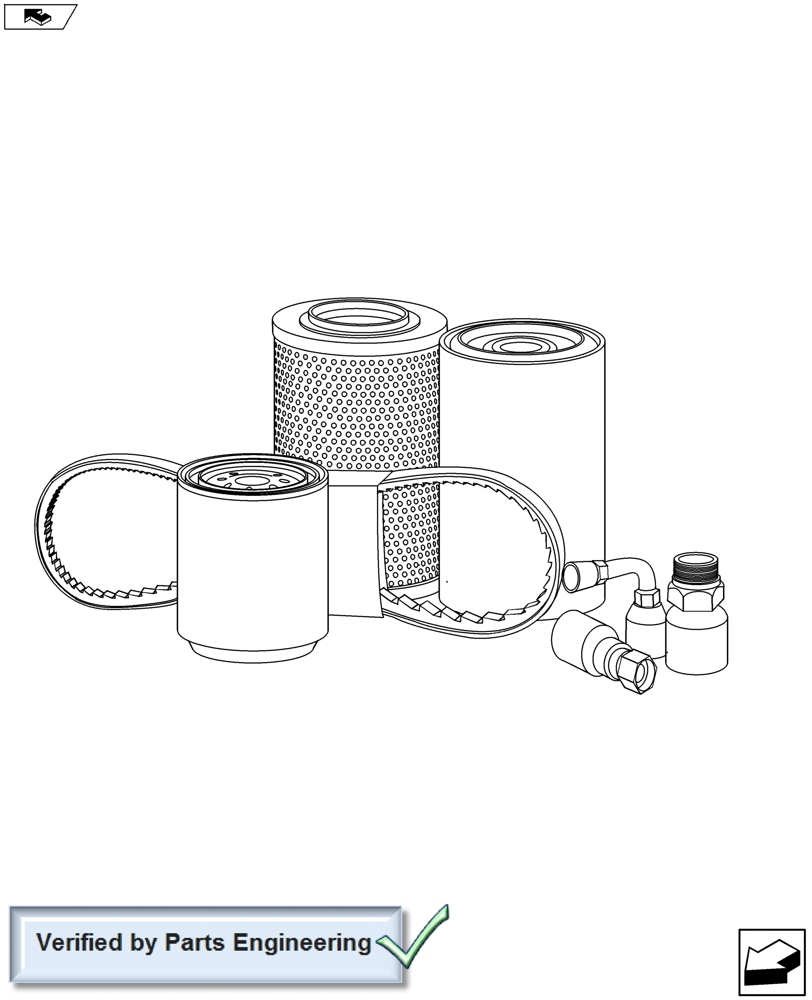

Запчасти Case IH FARMALL 85C (0.01.1) - INITIAL STOCKING LIST (ISL) (00) - GENERAL

LIST A

Parts Required For Preventative Maintenance

1шт.

1

47129134

CAB FILTER

Air Condition

1шт.

Fresh Air Standard, Not to be used with Heavy recirculation Filter

1шт.

2

84572321

CAB FILTER

Air Condition

1шт.

Fresh Air Antipollin, Not to be used with Heavy recirculation Filter

1шт.

3

47129095

CAB FILTER,Carbon

Air Condition Anti-Pollen

1шт.

The Carbon Filter can't be used on tractors manufactured after January 1st, 2010 (for Machine Directive reasons)

1шт.

4

47131888

CAB FILTER

Foam

1шт.

5

47131906

CAB FILTER

Recirculation Light Short

1шт.

Not to be used with Activated Carbon Filter; Air Conditioning and Antipollin Filter, Var. 330638-333638

1шт.

6

47131907

CAB FILTER

Recirculation Light Long

1шт.

Not to be used with Activated Carbon Filter; Air Conditioning and Antipollin Filter, Var. 330638-333638

1шт.

7

47131908

CAB FILTER

Recirculation Heavy Short

1шт.

Only to be used in conjunction with Activated Carbon Filter, Var. 331645

1шт.

8

47131909

CAB FILTER

Recirculation Heavy Long

1шт.

Only to be used in conjunction with Activated Carbon Filter, Var. 331645

1шт.

9

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine

1шт.

10

84257511

HYDRAULIC OIL FILTER,138.00mm OD

Transmission, Spin-On

1шт.

11

87037984

ELEMENT

Primary

1шт.

12

87037985

ELEMENT

Secondary

1шт.

13

84565884

FUEL FILTER,75.8mm OD x 172mm L, M16 x 1.5 - 6H

Engine, Spin-On

1шт.

14

84526251

FUEL FILTER

Engine, Spin-On

1шт.

With Large Capacy

1шт.

15

2852027

BREATHER

1шт.

16

87329736

FUEL FILTER

In-Line

1шт.

17

87313626

AIR FILTER

Primary

1шт.

With Pre-Cleaner and dust Ejector, Var. 332200

1шт.

18

87313629

AIR FILTER

Secondary

1шт.

With Pre-Cleaner and dust Ejector, Var. 332200

1шт.

19

5194879

ELEMENT

1шт.

LIST B

Parts Required For Preventative Maintenance And Basic Repair

1шт.

20

87312356

IGNITION KEY

Ignition

1шт.

21

87558952

PLUG

Radiator

1шт.

22

87552428

SWITCH

Seat With Diagnostic

1шт.

23

10857790

BULB,R10W, 12V, 5W

12V-5W

4шт.

24

10861290

BULB,12V, 35W

12V-35W

4шт.

25

87302898

BULB

Work Lamp (47126156)

4шт.

26

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

Toroidal Seal 2,62 X 44,12 (Pump 87386049 )

1шт.

27

87601757

O-RING,47mm ID x 2.62mm Width

47X2,62 Pump (87386049)

1шт.

28

87601758

SEAL KIT

Pump 87386049

1шт.

29

87601759

SEAL KIT

Pump 87386049

1шт.

30

2853552

SENSOR

Engine - Sensor Speed

1шт.

31

2856350

SENSOR

Engine - Sensor Water

1шт.

32

2830987

SENSOR

Engine - Water

1шт.

33

2852889

PRESSURE SWITCH

Engine - Oil

1шт.

34

2852157

SENSOR

Engine - Heater Sensor

1шт.
