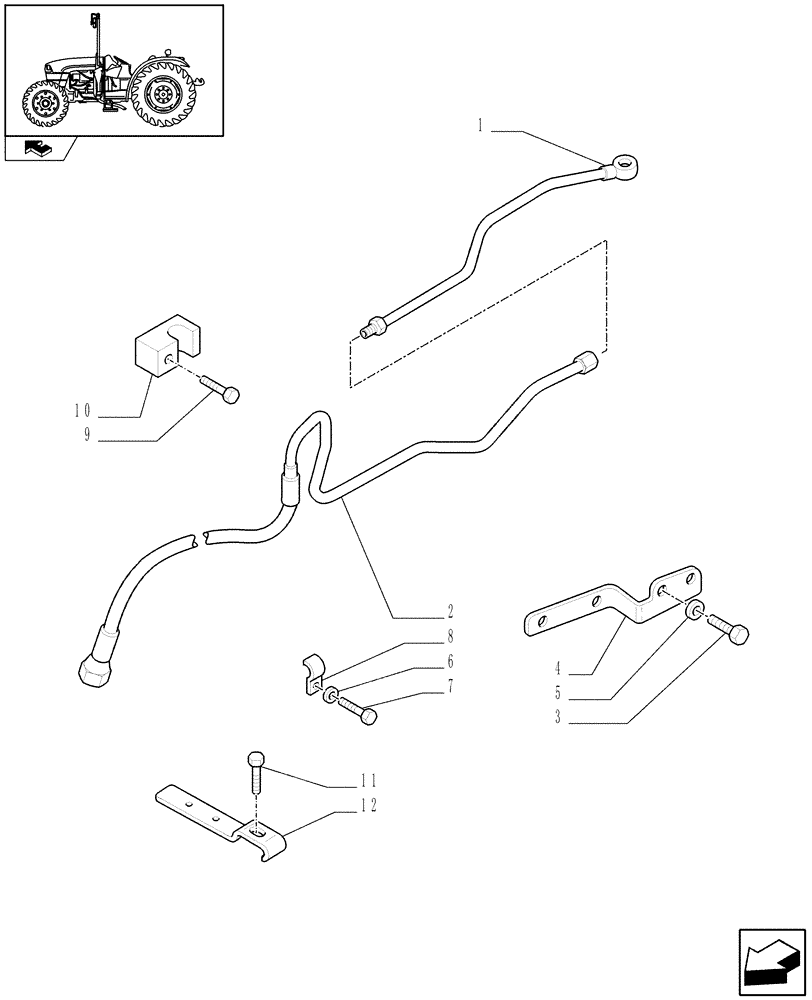

Запчасти Case IH FARMALL 85C (1.32.6/02) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (30 KM/H)- PIPES (VAR.335323) (03) - TRANSMISSION

1

5176162

RIGID TUBE

1шт.

2

87530104

RIGID TUBE

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

4

5180410

BRACKET

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

7

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

8

44903268

RETAINER COLLAR,12mm ID

1шт.

9

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

10

87532290

BRACKET

1шт.

11

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

12

87572241

RETAINER COLLAR

1шт.
