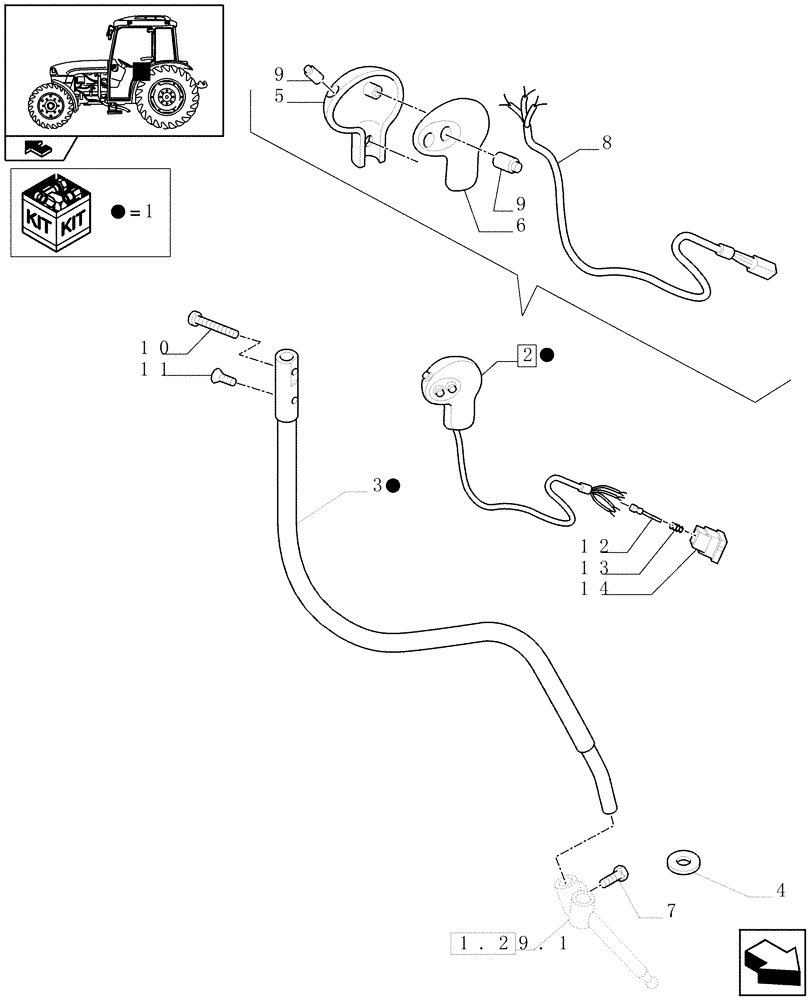

Запчасти Case IH FARMALL 85C (1.29.1/03) - POWER CLUTCH AND SPEED LEVER KNOB WITH 3 SWITCHES (VAR.336846) (03) - TRANSMISSION

1

87653756

LEVER

ASSY, Serial Range: -C6042

1шт.

1

87746291

LEVER

ASSY, Start Serial: D6042

1шт.

2

87599088

KNOB

ASSY, Serial Range: -C6042

1шт.

2

87746289

KNOB

ASSY, Start Serial: D6042

1шт.

3

87398216

LEVER

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

5

87358400

KNOB

RH

1шт.

6

82006429

KNOB

LH

1шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.

8

87520251

WIRE HARNESS

1шт.

9

87398154

SWITCH

3шт.

10

13274877

SCREW,Phil Pan Hd, M5 x 30mm, SST

1шт.

11

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

12

12451844

TERMINAL CONNECTOR,Male, 0.3 - 0.6 mm2

4шт.

13

12452283

GASKET

4шт.

14

12453387

MULTIPOLE CONNECTOR

1шт.
