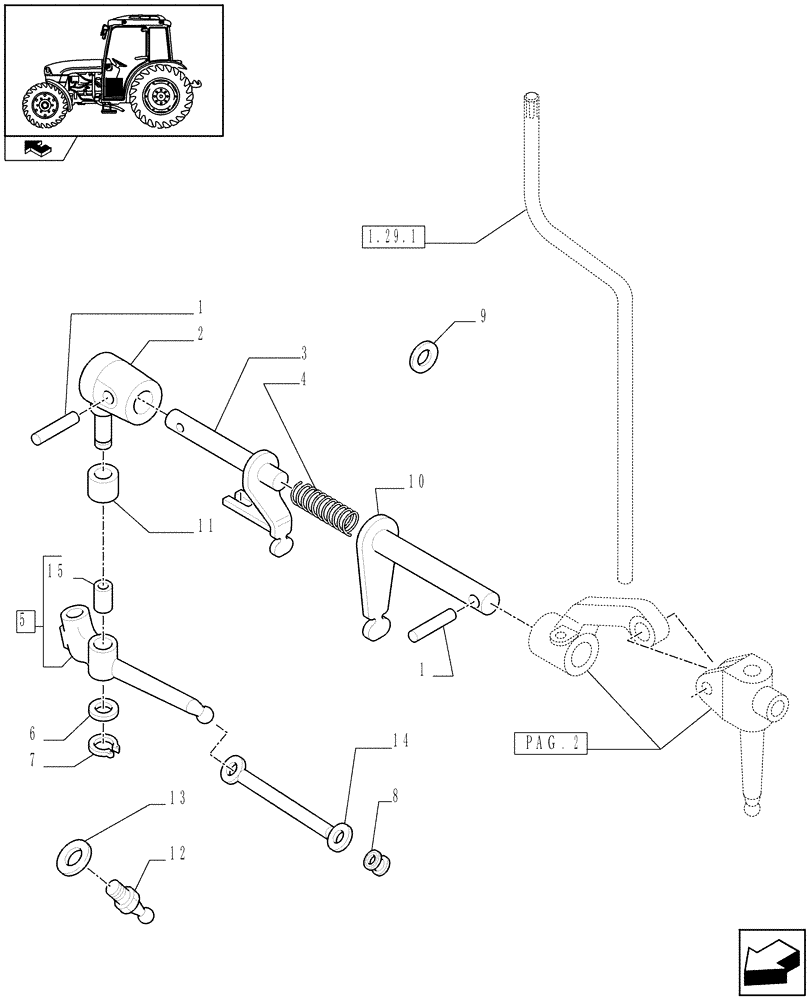

Запчасти Case IH FARMALL 85C (1.29.1/02[01]) - INTERLOCK FOR MECHANICAL TRANSMISSION - NA - BRACKET AND TIE-ROD (VAR.332111) (03) - TRANSMISSION

1

14607370

ROLL PIN,M8 x 45, Slotted

2шт.

2

5168293

HUB

1шт.

3

5185457

ROD

1шт.

4

5157487

SPRING,9.5mm OD x 44mm L

1шт.

5

87319874

LEVER

Incl. 11

1шт.

6

13550701

WASHER

1шт.

7

300625

SNAP RING,M16, Ext

1шт.

8

5195120

BUSHING,13mm ID x 20mm OD x 16mm L

1шт.

9

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

10

5178224

ROD,204.5mm L

1шт.

11

5165609

BUSHING,16.04mm ID x 18mm OD x 15mm L

1шт.

12

5166895

BALL STUD,M8

1шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

14

5195119

TIE-ROD

1шт.

15

5165609

BUSHING,16.04mm ID x 18mm OD x 15mm L

2шт.
