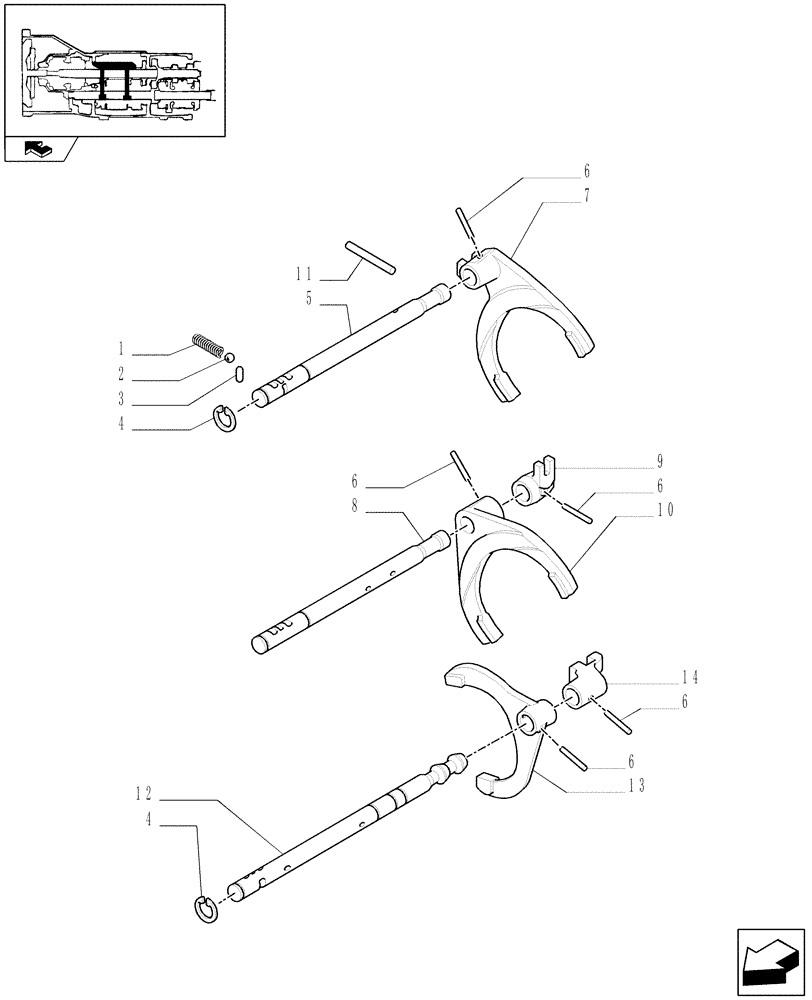

Запчасти Case IH FARMALL 85C (1.29.0) - TRANSMISSION INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

1

5168268

SPRING,Compression, 8mm OD x 42mm L

3шт.

2

20063390

BALL,8.73mm OD

D=11/32

3шт.

3

5149882

PAWL,8.5mm D x 23mm L

1шт.

4

300625

SNAP RING,M16, Ext

3шт.

5

5177302

ROD,15.5mm OD x 299mm L

1st/2nd Gear

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

5шт.

7

5171985

SHIFTER FORK,96mm OD x 8mm Thk

1st/2nd Gear

1шт.

8

5177303

ROD,15.5mm OD x 299mm L

3rd/4th Gear

1шт.

9

5172005

DOG

3rd/4th Gear

1шт.

10

5171991

SHIFTER FORK,96mm OD x 8mm Thk

3rd/4th Gear

1шт.

11

10337110

DOWEL,M6 x 45

1шт.

12

47130818

ROD,15.5mm OD x 391mm L

Rev

1шт.

13

47125919

YOKE,16mm Hole Dia

Rev

1шт.

14

5178133

DOG

Rev

1шт.

14

5178071

DOG

1шт.

28x16 for 16x16 Mechanical Transmission, VAR.330111

1шт.

14

5188419

DOG

1шт.

Interlock for Mechanical Trasmission - NA, VAR.332111

1шт.
