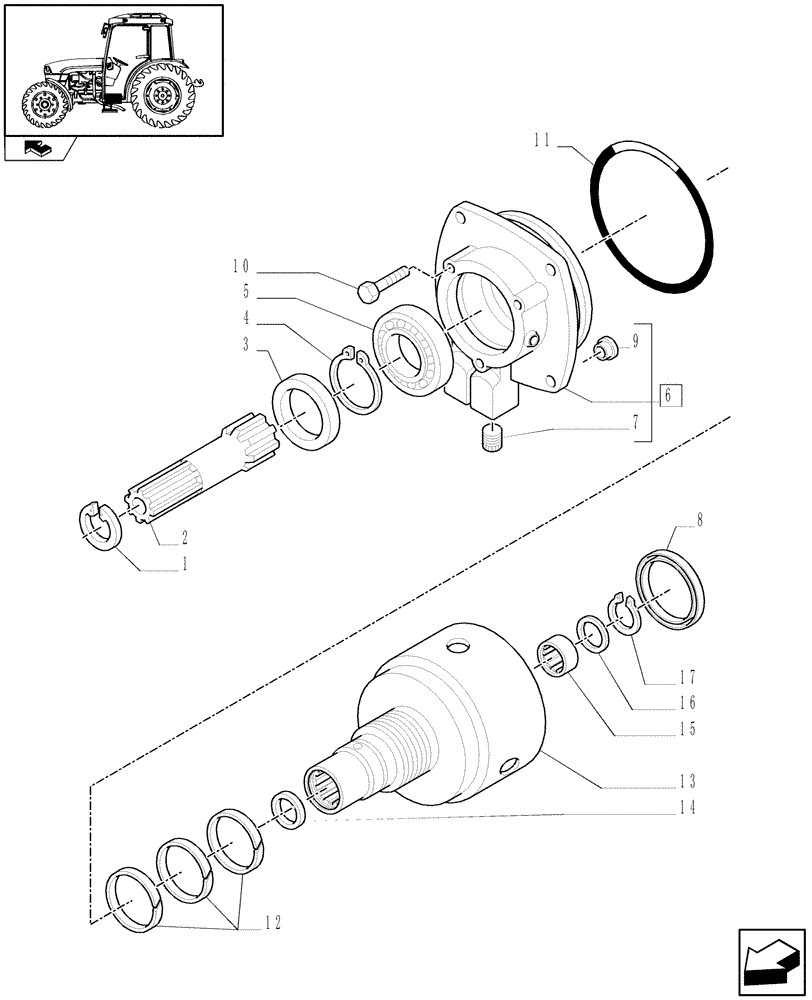

Запчасти Case IH FARMALL 85C (1.28.7/01[01]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - CLUTCH COVER PLATE (VAR.330275) (03) - TRANSMISSION

1

13421976

SNAP RING,M45, Int

1шт.

2

87558416

SHAFT,191mm

1шт.

3

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

50x70x8

1шт.

4

11069576

SNAP RING,M55, Ext

1шт.

5

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

50x90x18

1шт.

6

5177559

COVER

1шт.

7

10269404

PLUG,M12 x 1.5

M12x1.5

2шт.

8

5168345

SEAL,67.55mm ID x 75mm OD x 3.2mm Thk

67.55x75x3.2

1шт.

9

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

14462181

O-RING,152.1mm ID x 2.62mm Width

1шт.

12

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

3шт.

13

87558414

BELL HOUSING

1шт.

14

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25x31x7

1шт.

15

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

25x32x16

1шт.

16

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

25x32x16

1шт.

17

5180152

CIRCLIP,27.8mm ID

D=32

1шт.
