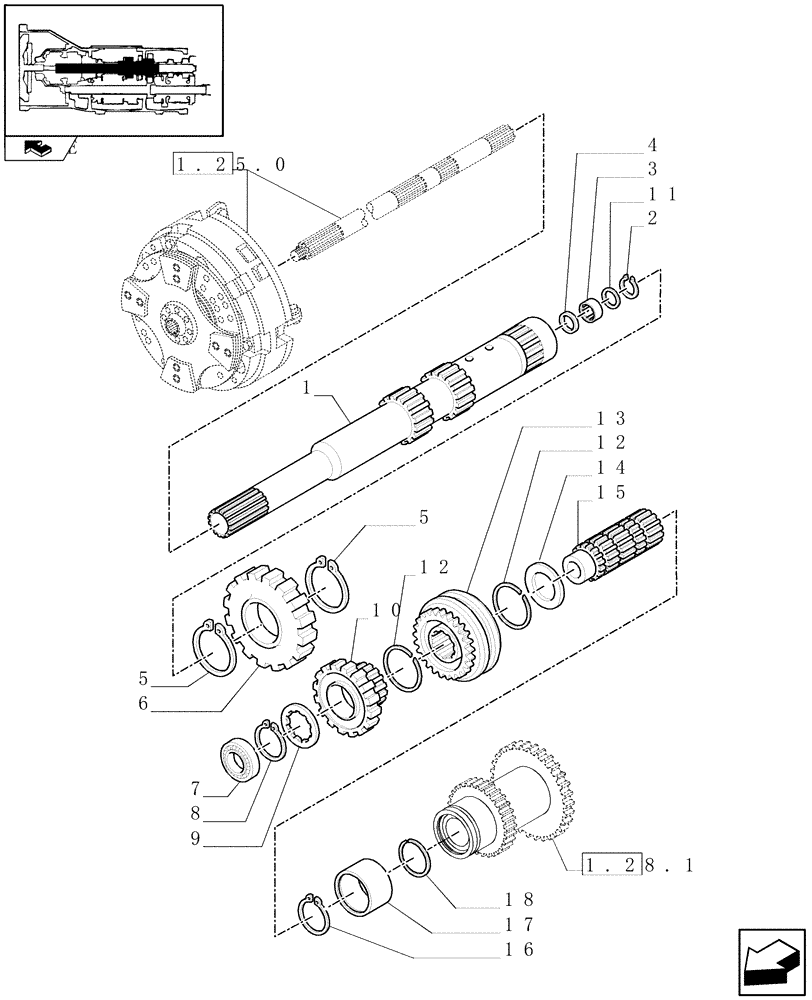

Запчасти Case IH FARMALL 85C (1.28.1/02[01]) - 32X16 WITH SYNCHRO GEARS AND SYNCHRO SHUTTLE WITH MECHANICAL SPLITTER - CLUTCH SHAFT (VAR.330118) (03) - TRANSMISSION

1

5177461

CONTROL SHAFT

1шт.

2

5180152

CIRCLIP,27.8mm ID

1шт.

3

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

4

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25x31x7

1шт.

5

5173975

CIRCLIP,50.8mm ID x 3mm Thk

D=55

2шт.

6

5173945

GEAR,40T

Splitter

1шт.

7

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

35x72x17

1шт.

8

5123651

SNAP RING,36mm, External

D=40

1шт.

9

5177039

THRUST WASHER,52mm OD x 2.5mm Thk, 12T

1шт.

10

5177566

DRIVEN GEAR,36T

Splitter

1шт.

11

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

12

5168195

SNAP RING,1.5mm Thk, Ext

2шт.

13

87692457

SYNCHRONIZER

1шт.

14

5173403

SPACER

1шт.

15

5177564

DRIVEN SHAFT,86.5mm

Splitter

1шт.

16

5173957

THRUST WASHER,39mm OD x 1.5mm Thk

1шт.

17

5173915

SPACER,50mm ID x 58mm OD x 34mm L

1шт.

18

5168188

SNAP RING,1.5mm Thk, Ext

1шт.
